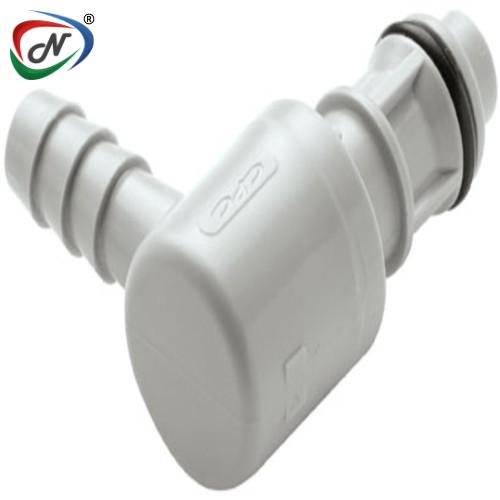

EFC23412 1/4 Hose Barb Non-Valved Elbow Coupling Insert

#NCPC294

Product Description

EFC23412

1/4 Hose Barb Non-Valved Elbow Coupling Insert

Main Features:

High Efficiency Valve

Plastic Thumb Latch

Polypropylene Material

Compatible

Main Benefits:

More Flow in a Compact Size

Fewer Moving Parts

Chemically Resistant & Gamma Sterilizable

Mates with most APC couplings

Main Specifications:

Material: Polypropylene

Material Finish: Molded Grey

Mounting Option: Free Floating

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Option: Non-Valved

Body Type: Insert

Bag Qty: 25

COUPLING INSERT - Polypropylene

TERMINATION	ELBOW HOSE BARB
TUBING/ THREAD SIZE	1/4" ID
METRIC EQ	6.4mm ID
STRAIGHT THRU	EFC23412
SHUTTOFF	EFCD23412
A(Height/Diameter)	0.63 (16.0)
B (Total Length)	1.32/1.45 (33.5/36.8)
C (Elbow radial length)	0.96 (24.4)

*All measurements are in inches (millimetres) unless otherwise noted.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
