SMPT0212 1/8 NPT NON-VALVED POLYPROPYLENE COUPLING BODY

#NSSP004912

Product Description

SMPT0212 1/8 NPT NON-VALVED POLYPROPYLENE COUPLING BODY

Main Features:

Single thumb latch

Latch always in position to accept insert

Compact, modular design

Independent quick connections

Main Benefits:

Minimizes inadvertent latch activation

Ensures leak-free operation

Fits well in the hand and is easy to wipe down

Requires minimal manual dexterity

Main Specifications:

Material: Polypropylene

Material Finish: Almond

Pressure Range: Vacuum to 100 psi, 6.9 bar

Mounting Option: Thread

Sterilization: EtO, e-beam or gamma

Temperature Range: 32°F - 120°F (0°C - 48°C)

Seal Options: BUNA-N

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Bodies

Bag Qty: 50

COUPLING BODIES - Polypropylene

TERMINATION	IN-LINE PIPE THREAD
TUBING/THREAD SIZE	1/8” NPT
SHUTOFF	SMPT0212
A (Height/Diameter)	0.51 (13)
B (Total Length)	0.86 (21.84)
C(Connected Length)	7/16 (11.1)

*All measurements are in inches (millimetres) unless otherwise noted.Tubing must meet stated inside and outside diameters. WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

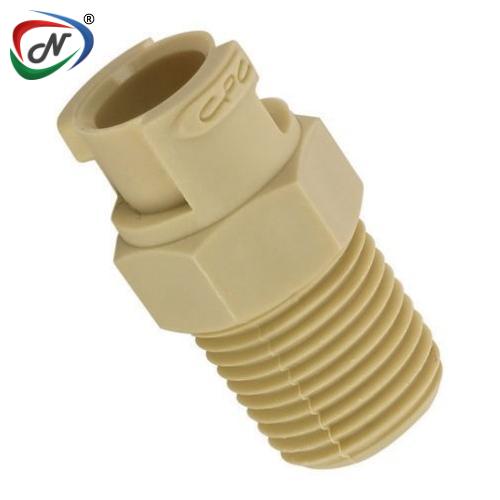

Note: Image is just for ref.
