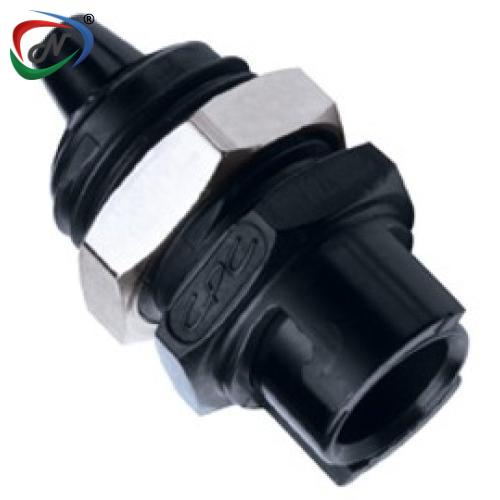

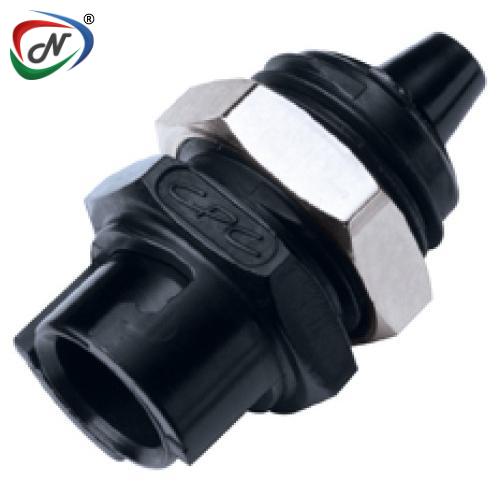

SMFPM02BLK 1/8 HOSE BARB NON-VALVED PANEL MOUNT ACETAL DYED BLACK COUPLING BODY
#NSSP004958
Product Description
SMFPM02BLK 1/8 HOSE BARB NON-VALVED PANEL MOUNT ACETAL DYED BLACK COUPLING BODY
Main Features:
- Single thumb latch
- Latch always in position to accept insert
- Compact, modular design
- Independent quick connections
Main Benefits:
- Minimizes inadvertent latch activation
- Ensures leak-free operation
- Fits well in the hand and is easy to wipe down
- Requires minimal manual dexterity
Main Specifications:
- Material: Acetal
- Material Finish: Dyed Black
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Mounting Option: Thread
- Sterilization: EtO, e-beam or gamma
- Temperature Range: 32°F - 120°F (0°C - 48°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Bodies
- Bag Qty: 50
COUPLING INSERT – Acetal
TERMINATION | ?IN-LINE HOSE BARB |
?TUBING SIZE | ?1/4" ID |
METRIC EQ | ?6.4mm ID |
STRAIGHT THRU | ? ?APC22004 |
SHUTOFF | ? ?APCD22004 |
A (?Height/Diameter) | ?0.60/0.72 (15.2/18.3) |
B (Total Length) | ?1.40/2.10 (35.6/53.3) |
*All measurements are in inches (millimetres) unless otherwise noted. ?Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004958 |
| Manufacturer Code | SMFPM02BLK |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
