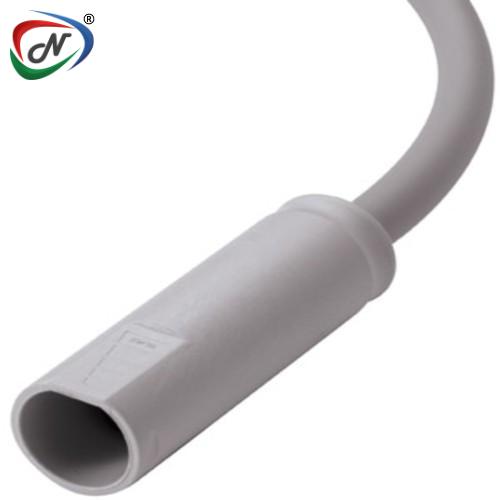

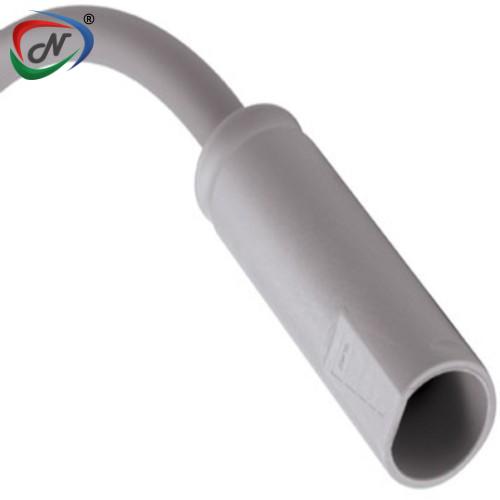

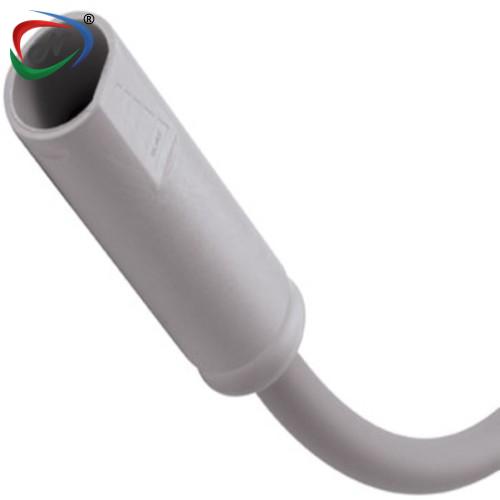

MHQC17000 In-Line body, 4’ (1.2m) umbilical with 1/16” (3.2mm) ID tube, (2) 22 gauge wires
#NSSP007124
Product Description
MHQC17000 In-Line body, 4’ (1.2m) umbilical with 1/16” (3.2mm) ID tube, (2) 22 gauge wires
Main Features:
- Single connection point for air and power connections
between a device and its tool/hand piece
- Easy-to-use breakaway design
- Turnkey solution
- Valve on panel mount side
- Off-the-shelf assembly
- Custom options available
Main Benefits:
- Increases safety and makes systems more user friendly
- Quick, automatic disconnect
- Reduces multiple components
- Prevents loss of pressure upon disconnect
- Minimizes engineering design and manufacturing effort
- Customizable to meet your unique requirements
Main Specifications:
- Material: Acetal
- Material Finish: Light grey
- Pressure Range: Vacuum to 25 psi, 1.7 bar
- Color: Gray
- Mounting Option: Free Floating
- Temperature Range: 40°F - 80°F (4°C - 26°C)
- Seal Options: BUNA-N
- Valve Option: Valved
- Body Type: Bodies
- Bag Qty: 1
COUPLING HOSE - Acetal
CONFIGURATION | HOSE |
FLOW PATHS | 1/16" ID (1.6mm) |
PART NO. | MHQC17000 |
A(Height/Diameter) | 0.62 (15.7) |
B( Total Length) | 2 (50.8) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-Mini-Hybrid-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007124 |
| Manufacturer Code | MHQC17000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
Related Products
HQC17001 Polypropylene Hybrid Connector, 1/8
NESPL Code - #NCPC

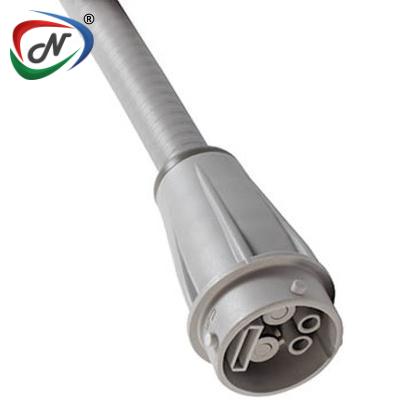

HQC17002 Polypropylene Hybrid Connector, 1/8
