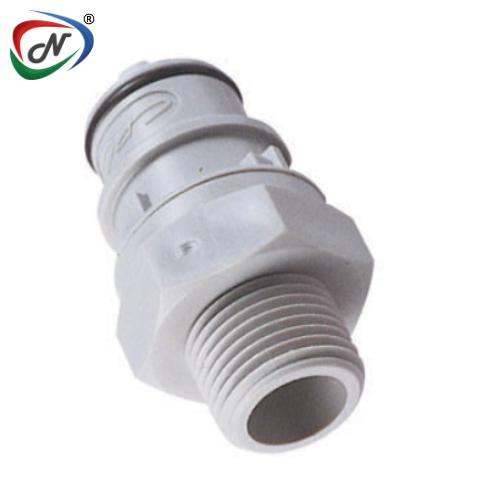

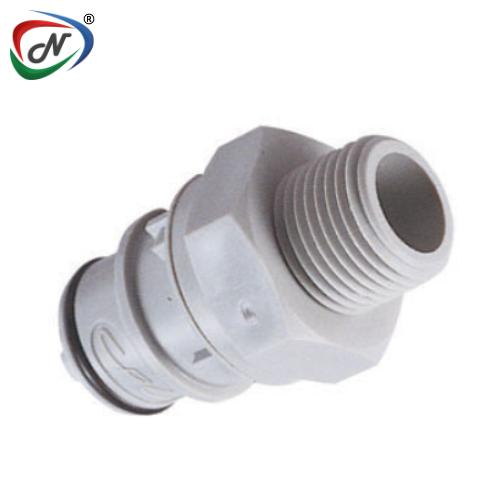

HFCD24612 3/8 NPT Valved Coupling Insert
#NSSP004396
Product Description
HFCD24612
3/8 NPT Valved Coupling Insert
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Color: Gray
- Mounting Option: Thread
- Temperature Range: 32°F -
160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Bag Qty: 10
Features
Benefits
High efficiency valve
More flow in a compact size
Ergonomic design
Easy to grip, simple to operate
Polypropylene material
Chemically resistant and gamma sterilizable
Compatible
Mates with HFC35 and HFC57 couplings
COUPLING BODIES – Polypropylene
TERMINATION | IN-LINE PIPE THREAD |
TUBING SIZE | 3/8" NPT |
METRIC EQ | |
STRAIGHT THRU | HFC24612 |
SHUTOFF | HFCD24612 |
A (Height/Diameter) | 1.16 (29.5) |
B (Total Length) | 1.77/1.89 (45.0/48.0) |
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-HFC12-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004396 |
| Manufacturer Code | HFCD24612 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
