HFCD22835 1/2 Hose Barb Valved In-Line Polysulfone Coupling Insert
#NSSP003228
Product Description
HFCD22835 1/2 Hose Barb Valved In-Line Polysulfone Coupling Insert
Main Features:
|
|
|
|
|
- TEMPERATURE: -40°F to 280°F (-40°C to 138°C)
- MATERIALS:
Main components and valves:
HFC35 - Polysulfone
HFC57 - UV-resistant polysulfone
- THUMB LATCH:
HFC35 - Polysulfone
HFC57 - UV-resistant polysulfone
- Valve spring: 316 stainless steel
- External springs: 316 stainless steel
- O-rings: EPDM
- Panel mount gasket: EPDM
- Female GHT gasket: FDA
- EPDM COLORS:
HCF35 - Natural white, dark grey latch
HCF57 - Black, black latch
- TUBING SIZES: 3/8" to 3/4" ID, 9.5mm to
19.0mm ID
Main Specifications:
- Material: Polysulfone
- Material Finish: Molded Black
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 280°F (-40°C - 138°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Bag Qty: 10
COUPLING INSERTS - Polysulfone
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/2" ID |
METRIC EQ. | 12.7mm ID |
STRAIGHT THRU | HFC22835 |
SHUTOFF | HFCD22835 |
A (Height/Diameter) | 1 (25.4) |
B (Total Length) | 1.91/2.03 (48.5/51.6) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

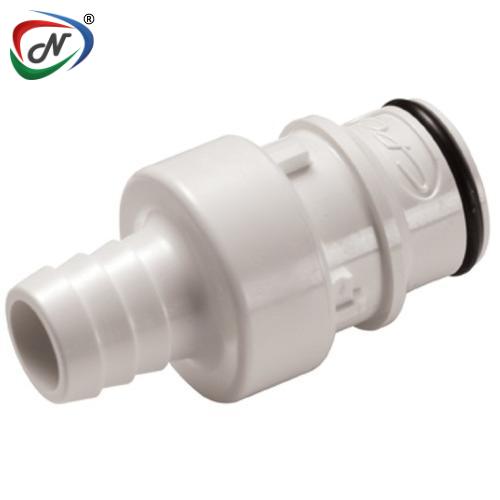

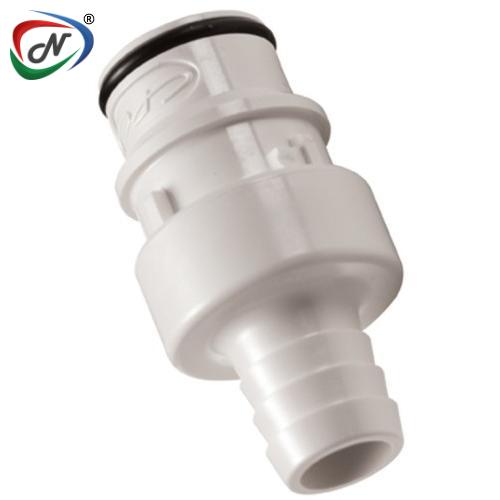

Note: Image is just for ref.
Click to download : CPC-HFC35-57-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003228 |
| Manufacturer Code | HFCD22835 |
| HSN Code | 8481805090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.013kg |
| Type | Quick Fittings |
