HFCD22812 1/2 Hose Barb Valved In-Line Polypropylene Insert

#NSSP005436

Product Description

HFCD22812 1/2 Hose Barb Valved In-Line Polypropylene Insert

Main Specifications:

Material: Polypropylene
Material Finish: Molded Grey
Pressure Range: Vacuum to 60 psi, 4.2 bar
Color: Gray
Mounting Option: Free Floating
Temperature Range: 32°F - 160°F (0°C - 71°C)
Seal Options: EPDM
Valve Spring: 316 Stainless Steel
Valve Options: Valved
Body Type: Inserts
Bag Qty: 100

Main Features:

High efficiency valve
Ergonomic design
Polypropylene material
Compatible

Main Benefits:

More flow in a compact size
Easy to grip, simple to operate
Chemically resistant and gamma sterilizable
Mates with HFC35 and HFC57 couplings

COUPLING INSERTS - Polypropylene

TERMINATION	IN-LINE HOSE BARB (NON-VALVED SHOWN)
TUBING/THREAD SIZE	1/2" ID
METRIC EQ	12.7mm ID
STRAIGHT THRU	HFC22812
SHUTOFF	HFCD22812
A (Height/Diameter)	1 (25.4)
B (Total Length)	1.97/2.09 (50.0/53.1)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

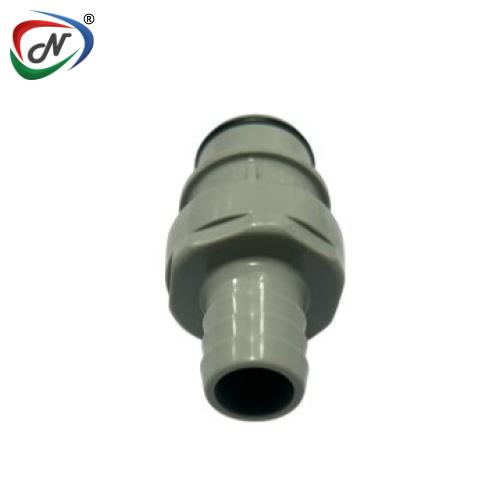

Note: Image is just for ref.
