HFCD22639M 3/8 Hose Barb Valved In-Line Coupling Insert
#NSSP007896
Product Description
HFCD22639M 3/8 Hose Barb Valved In-Line Coupling Insert
Medical/ Biopharma Fitting
The HFC39 Series Couplings offer aseptic
disconnect capabilities. Automatic shutoff valves effectively seal the flow
path upon disconnection, safeguarding precious media and removing the necessity
for pinch clamps and tube welders. The user-friendly thumb latch design ensures
a secure, leak-proof connection and facilitates one-handed disconnections.
|
Features |
Benefits | ||
|
Automatic
shutoff valves |
Validated
aseptic disconnect for pre-sterilized systems | ||
|
Audible
“click” |
Provides
confidence of a secure | ||
|
Lightweight |
Easy
integration with single-use tube assemblies | ||
|
BSE/TSE
free materials |
Meet
ADCF requirements | ||
Main Specifications:
- Material: Polysulfone, USP Class VI, ADCF
- Material Finish: Natural
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Color: Amber tint
- Mounting Option: Free Floating
- Sterilization Method: Gamma, autoclave
- Temperature Range: -40°F - 280°F (-40°C - 138°C)
- Seal Options: Silicone, platinum-cured
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Bag Qty: 10
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.

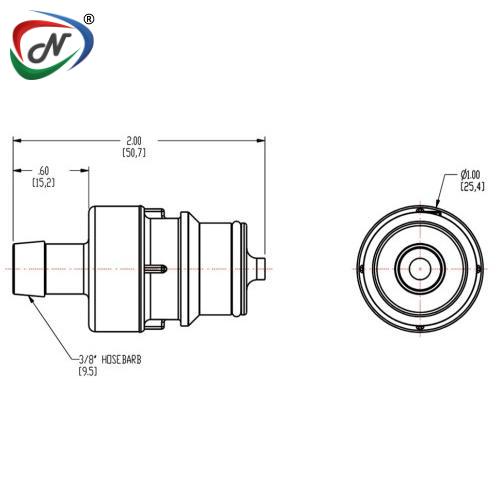

Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007896 |
| Manufacturer Code | HFCD22639M |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
