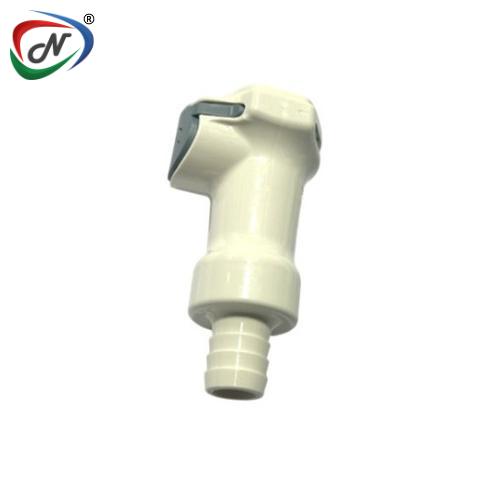

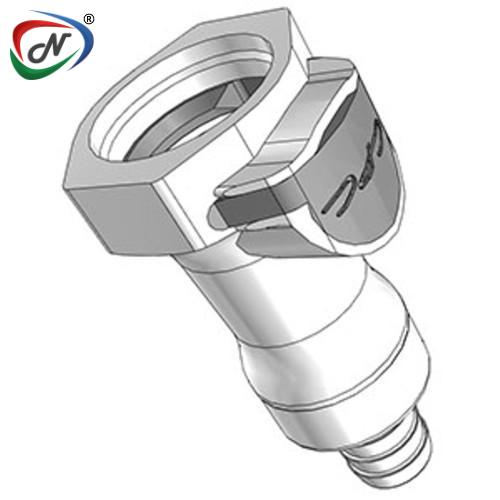

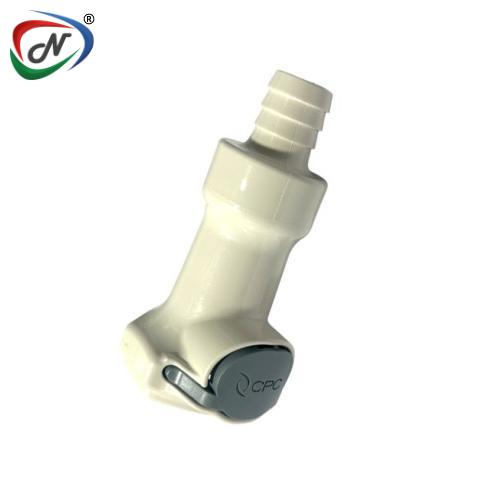

HFCD17835 1/2 Hose Barb Valved In-Line Coupling Body
#NSSP003227
Product Description
HFCD17835
1/2 Hose Barb Valved In-Line Coupling Body
Main Specifications:
- Material: Polysulfone
- Material Finish: Molded Black
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 280°F (-40°C - 138°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Bodies
- Bag Qty: 10
Main Features:
- Polysulfone Material (HFC35)
- UV Polysulfone Material (HFC57)
- High efficiency valve
- Ergonomic design
- Compatible
Main Benefits:
- Physically strong and autoclavable
- Physically strong and UV resistant
- More flow and less spillage in a compact size
- Easy to grip, simple to operate
- Mates with HFC12 couplings
COUPLING BODIES - Polysulfone
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/2" ID |
METRIC EQ. | 12.7mm ID |
STRAIGHT THRU | HFC17835 |
SHUTOFF | HFCD17835 |
A (Height/Diameter) | 1.44 (36.6) |
B (Total Length) | 2.82 (71.6) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-HFC35-57-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003227 |
| Manufacturer Code | HFCD17835 |
| HSN Code | 8481805090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.024kg |
| Type | Quick Fittings |
