HFCD17639M 3/8 Hose Barb Valved In-Line Coupling Body
#NSSP007895
Product Description

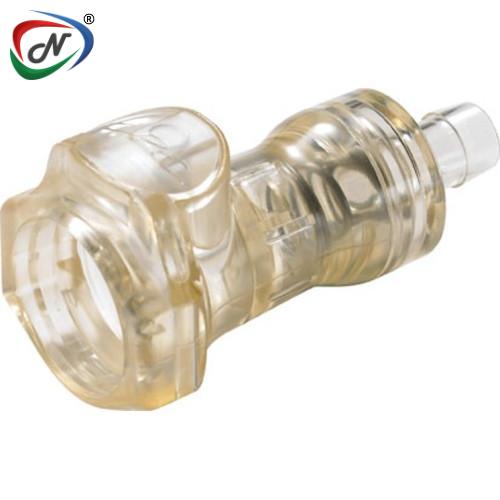

HFCD17639M 3/8 Hose Barb Valved In-Line Coupling Body
Medical/ Biopharma Fitting
The HFC39 Series Couplings offer aseptic disconnect capabilities. Automatic shutoff valves effectively seal the flow path upon disconnection, safeguarding precious media and removing the necessity for pinch clamps and tube welders. The user-friendly thumb latch design ensures a secure, leak-proof connection and facilitates one-handed disconnections.
|
Features |
Benefits | ||
|
Automatic shutoff valves |
Validated aseptic disconnect for pre-sterilized systems | ||
|
Audible
“click” |
Provides
confidence of a secure | ||
|
Lightweight |
Easy integration with single-use tube assemblies | ||
|
BSE/TSE
free materials |
Meet
ADCF requirements | ||
Main Specifications:
- Material: Polysulfone, USP Class VI, ADCF
- Material Finish: Natural
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Color: Amber tint
- Mounting Option: Free Floating
- Sterilization Method: Gamma, autoclave
- Temperature Range: -40°F - 280°F (-40°C - 138°C)
- Seal Options: Silicone, platinum-cured
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Bag Qty: 10
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.

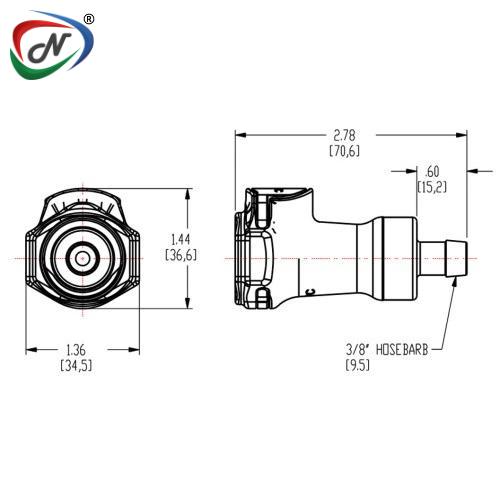

Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007895 |
| Manufacturer Code | HFCD17639M |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
