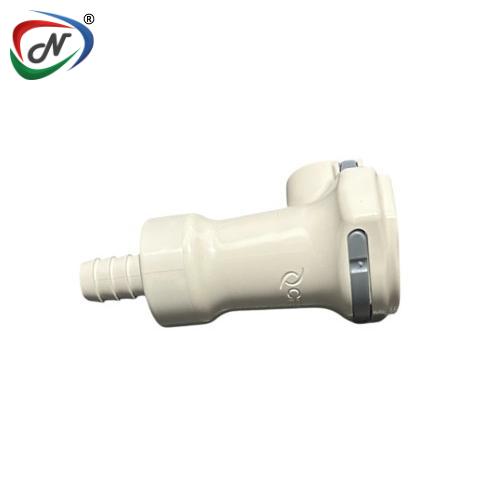

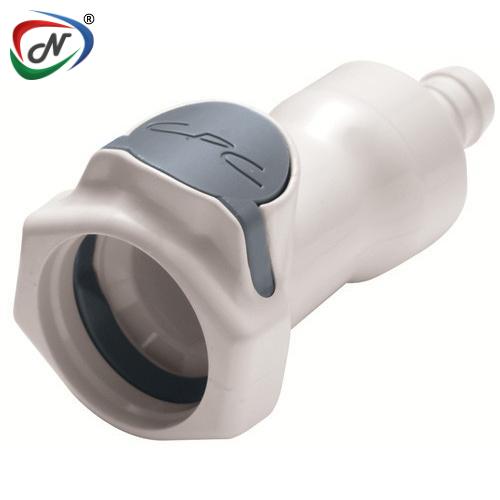

HFCD17635 3/8 Hose Barb Valved In-Line Coupling Body
#NSSP003214
Product Description
HFCD17635
3/8 Hose Barb Valved In-Line Coupling Body
|
Features |
Benefits | ||
|
Polysulfone Material
(HFC35) |
Physically strong and
autoclavable | ||
|
UV Polysulfone Material (HFC57) |
Physically strong and UV
resistant | ||
|
High efficiency valve |
More flow and less
spillage in a compact size | ||
|
Ergonomic design |
Easy to grip, simple to operate | ||
|
Compatible |
Mates with HFC12
couplings | ||
Main Specifications:
- Material: Polysulfone
- Material Finish: Molded Black
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 280°F (-40°C - 138°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 10
COUPLING BODIES - Polysulfone
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ | 9.5mm ID |
STRAIGHT THRU | HFC17635 |
SHUTOFF | HFCD17635 |
A (Height/Diameter) | 1.44 (36.6) |
B (Total Length) | 2.82 (71.6) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-HFC35-57-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003214 |
| Manufacturer Code | HFCD17635 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.023kg |
| Type | Quick Fittings |
