HFCD171212 3/4 Hose Barb Valved In-Line Coupling Body
#NSSP005391
Product Description
HFCD171212
3/4 Hose Barb Valved In-Line Coupling Body
Main Features:
- High Efficiency Valve
- Ergonomic Design
- Polypropylene Material
- Compatible
Main Benefits:
- More flow in a compact size
- Easy to grip, simple to operate
- Chemically resistant & gamma sterilizable
- Mates with HFC35 & HFC57 couplings
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Color: Grey
- Mounting Option: Free Floating
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 10

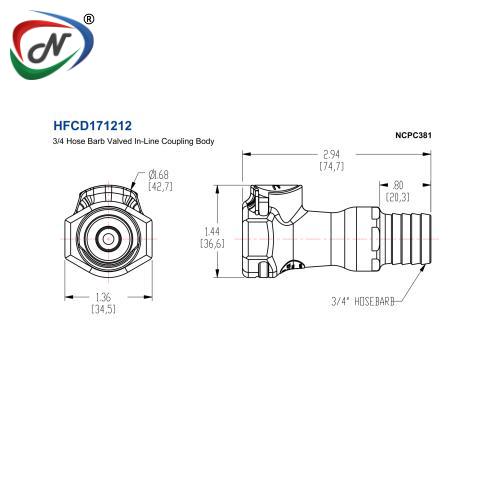

COUPLING BODIES - Polypropylene
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 3/4" ID |
METRIC EQ | 19.0mm ID |
STRAIGHT THRU | HFC171212 |
SHUTOFF | HFCD171212 |
A(Height/Diameter) | 1.44 (36.6) |
B( Total Length) | 2.94 (74.7) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005391 |
| Manufacturer Code | HFCD171212 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
