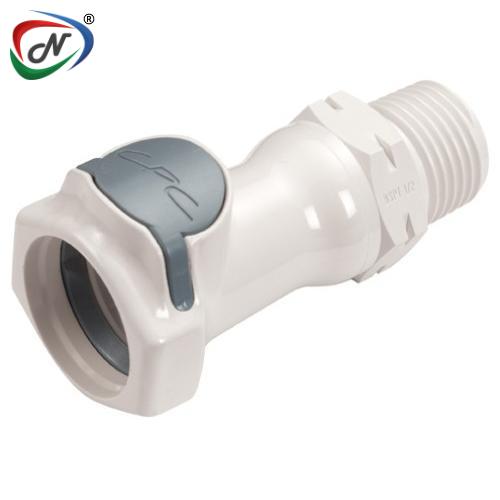

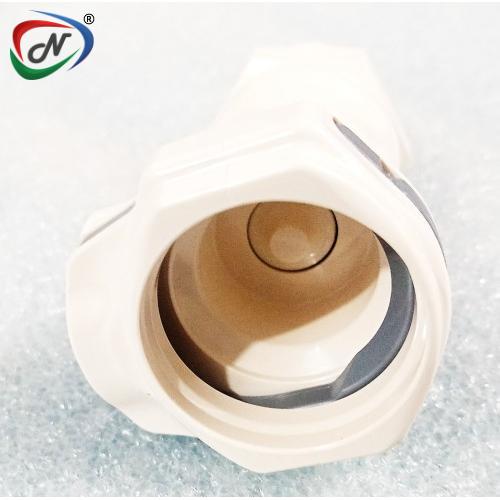

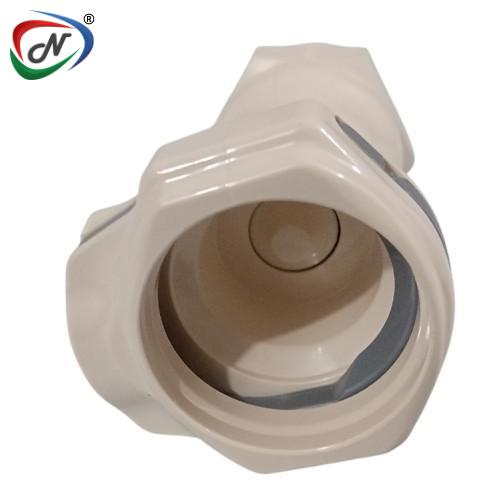

HFCD10835BSPT-1/2 BSPT NPT Valved Polysulfone Coupling Body

#NSSP003530

Product Description

HFCD10835BSPT-1/2 BSPT NPT Valved Polysulfone Coupling Body

Main Features:

High Efficiency Valve

Ergonomic Design

Polypropylene Material

Compatible

Main Benefits:

More flow in a compact size

Easy to grip, simple to operate.

Chemically resistant & gamma sterilizable

Mates with HFC35 & HFC57 couplings

Main Specifications:

Material: Polypropylene

Material Finish: Molded Black

Pressure Range: Vacuum to 125 psi, 8.6 bar

Color: White

Mounting Option: Thread

Temperature Range: -40°F - 280°F (-40°C - 138°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Body

Bag Qty: 10

COUPLING BODIES - Polysulfone

TERMINATION	IN-LINE PIPE THREAD
TUBING/ THREAD SIZE	1/2" BSPT
STRAIGHT THRU	HFC10835BSPT
SHUTOFF	HFCD10835BSPT
A(Height/Diameter)	1.44 (36.6)
B( Total Length)	2.88 (73.2)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
