HFCD10612BSPT 3/8 BSPT Valved Coupling Body
#NSSP004395
Product Description
HFCD10612BSPT
3/8 BSPT Valved Coupling Body
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded White
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Color: Gray
- Mounting Option: Thread
- Temperature Range: 32°F -
160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Body
- Bag Qty: 10
Features
Benefits
High efficiency valve
More flow in a compact size
Ergonomic design
Easy to grip, simple to operate
Polypropylene material
Chemically resistant and gamma sterilizable
Compatible
Mates with HFC35 and HFC57 couplings
COUPLING BODIES – Polypropylene
TERMINATION | IN-LINE PIPE THREAD |
TUBING SIZE | 3/8" BSPT |
METRIC EQ | |
STRAIGHT THRU | HFC10612BSPT |
SHUTOFF | HFCD10612BSPT |
A (Height/Diameter) | 1.44 (36.6) |
B (Total Length) | 2.72 (69.1) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

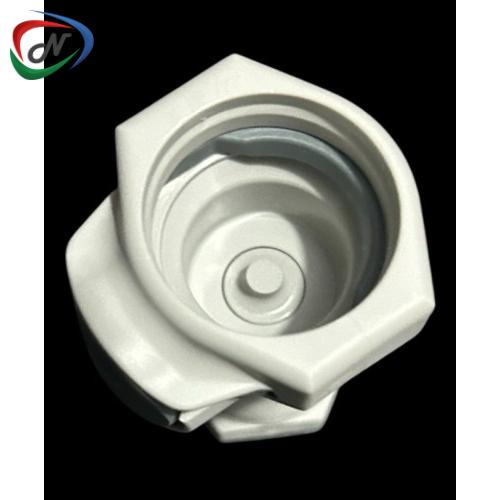

Note: Image is just for ref.
Click to download : CPC-HFC12-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004395 |
| Manufacturer Code | HFCD10612BSPT |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
