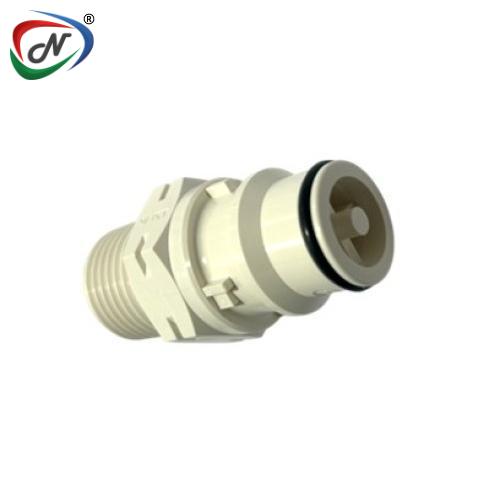

HFC24835BSPT-1/2 BSPT Non-Valved Polysulfone Coupling Insert

#NSSP003531

Product Description

HFC24835BSPT-1/2 BSPT Non-Valved Polysulfone Coupling Insert

Main Features:

High Efficiency Valve

Ergonomic Design

Polypropylene Material

Compatible

Main Benefits:

More flow in a compact size

Easy to grip, simple to operate

Chemically resistant & gamma sterilizable

Mates with HFC35 & HFC57 couplings

Main Specifications:

Material: Polypropylene

Material Finish: Molded Black

Pressure Range: Vacuum to 125 psi, 8.6 bar

Color: White

Mounting Option: Thread

Temperature Range: -40°F - 280°F (-40°C - 138°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Non-Valved

Body Type: Insert

Bag Qty: 10

COUPLING INSERTS- Polysulfone

TERMINATION	IN-LINE PIPE THREAD (NON-VALVED SHOWN)
TUBING/ THREAD SIZE	1/2" BSPT
STRAIGHT THRU	HFC24835BSPT
SHUTOFF	HFCD24835BSPT
A(Height/Diameter)	1.16 (29.5)
B( Total Length)	1.17/2.09 (29.7/53.1)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
