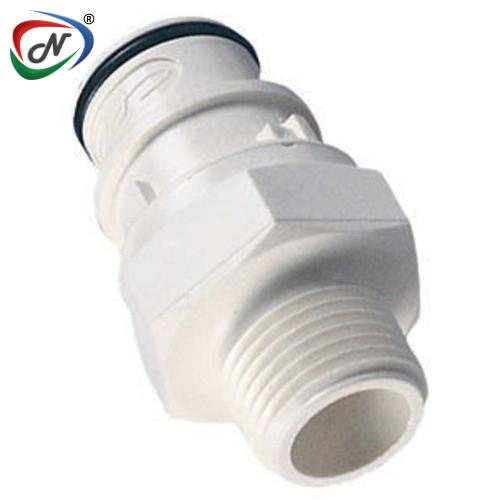

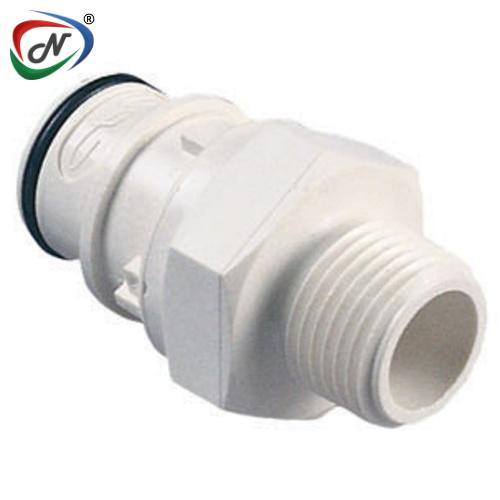

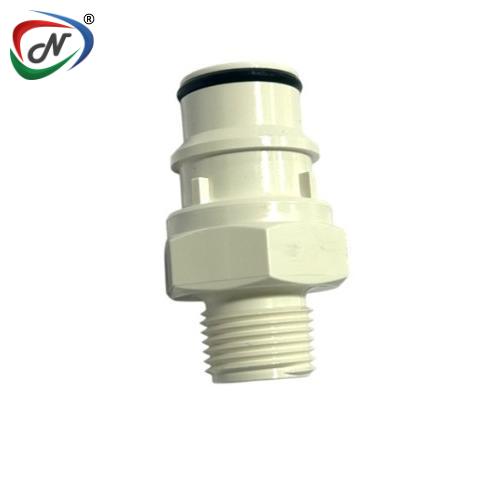

HFC24635 3/8 NPT Non-Valved Coupling Insert
#NSSP003215
Product Description
HFC24635
3/8 NPT Non-Valved Coupling Insert
Main Features:
- Polysulfone Material (HFC35)
- UV Polysulfone Material (HFC57)
- High Efficiency Valve
- Ergonomic Design
- Compatible
Main Benefits:
- Physically strong & autoclavable.
- Physically strong & UV Resistant.
- More Flow & Less spillage in a compact size.
- Easy to grip & Simple to operate.
- Mates with HFC12 Couplings.
Main Specifications:
- Material: Polysulfone
- Material Finish: Molded White
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F - 280°F (-40°C - 138°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 10
COUPLING INSERTS - Polysulfone
TERMINATION | IN-LINE PIPE THREAD (NON-VALVED SHOWN) |
TUBING/THREAD SIZE | 3/8" NPT |
STRAIGHT THRU | HFC24635 |
SHUTOFF | HFCD24635 |
A (Height/Diameter) | 1.16 (29.5) |
B (Total Length) | 1.82/1.94 (46.2/49.3) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-HFC35-57-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003215 |
| Manufacturer Code | HFC24635 |
| HSN Code | 3917400090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.011kg |
| Type | Quick Fittings |
