HFC241235 3/4 NPT Non-Valved Polysulfone Coupling Insert
#NSSP005291
Product Description

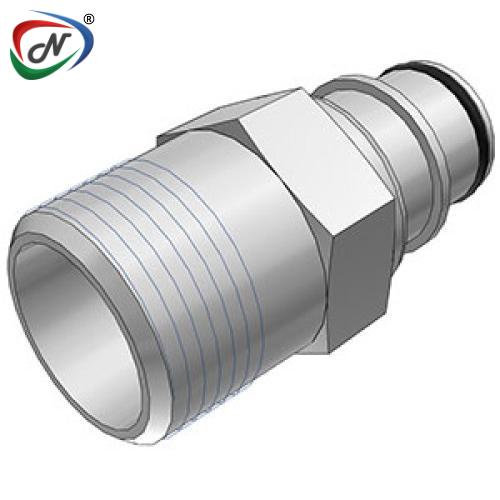

HFC241235 3/4 NPT Non-Valved Polysulfone Coupling Insert
HFC Disconnects enable sterile disconnection of singleuse biopharma and cell and gene therapy manufacturing systems. With an easy push of the connector thumb latch, sterility is maintained on both sides of the system during the disconnection process. The HFC Disconnect sets include protective thumb latch covers to help reduce the chance of accidental disconnection, and are laser marked with item and lot number for complete batch traceability
Main Features:
- High Efficiency Valve
- Ergonomic Design
- Polypropylene Material
- Compatible
Main Benefits:
- More flow in a compact size
- Easy to grip, simple to operate
- Chemically resistant & gamma sterilizable
- Mates with HFC35 & HFC57 couplings
Main Specifications:
- Material: Polysulfone
- Material Finish: Molded White
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Color: White
- Mounting Option: Thread
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Non-Valved
- Body Type: Inserts
- Bag Qty: 10
Click to download : CPC-HFC35-57-Spec-Sheet.pdfMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005291 |
| Manufacturer Code | HFC241235 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
