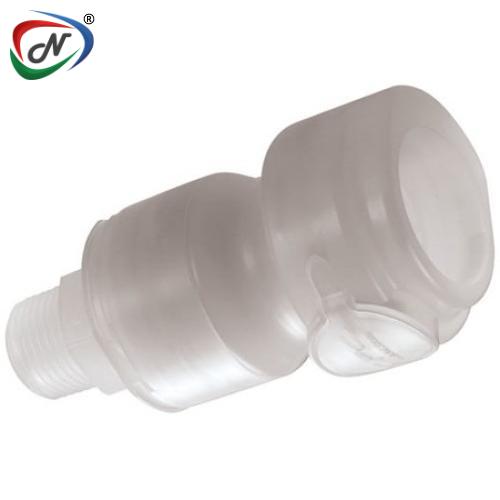

CQGD06100106 Valved In-Line Polypropylene Coupling Body, 3/8 Flare and FKM (Viton®) O-Ring
#NSSP004706
Product Description
CQGD06100106 Valved In-Line Polypropylene Coupling Body, 3/8 Flare and FKM (Viton®) O-Ring
Main Specifications:
- Material: Polypropylene
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 5.5 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: 32°F - 150°F (0°C - 66°C)
- Seal Options: Viton FKM
- Valve Spring: Hastelloy C
- Valve Options: Valved
- Body Type: Bodies
- Spillage: <0.1 cc (ml)/disconnect (reconnect)
- Bag Qty: 1
Main Features:
- Non-spill design
- Pressure-balanced
- Springless flow path design
Main Benefits:
- Ultimate protection from
chemicals and fumes
- Easy to reconnect at high
pressure
- Eliminates source of metallic contaminants
COUPLING BODY - Polyproplyene
TERMINATION | IN LINE |
TUBING | 3/8" OD |
TERMINATION TYPE | Flare compression |
SHUTOFF | CQGD06100106 |
A (Height/Diameter) | 1.96 (49.8) |
B (Total Length) | 4.21 (106.9) |
C (Hose Barb Length) | 1 (25.4) |
*All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-CQG-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004706 |
| Manufacturer Code | CQGD06100106 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
