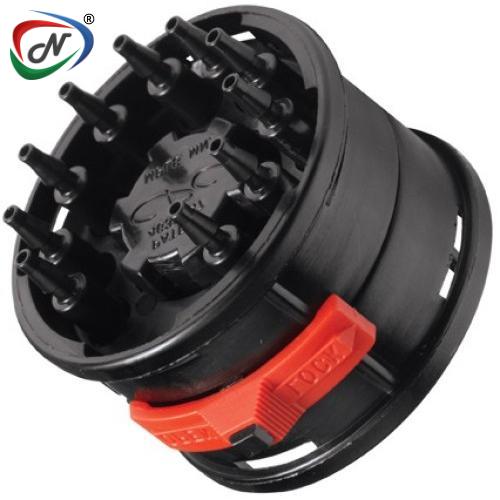

TTD1002 1/8 HOSE BARB VALVED ACETAL MOLDED BLACK ASSEMBLY
#NSSP004735
Product Description
TTD1002 1/8 HOSE BARB VALVED ACETAL MOLDED BLACK ASSEMBLY
Multi-tube couplings offer a convenient quick disconnect solution for two, six, or ten distinct fluid lines.
The Tentube™ model is designed with valves on the body side and is available in both panel mount and in-line configurations, providing optimal design versatility. This coupling can connect and disconnect as many as ten lines using a straightforward slide latch mechanism.
Sixtube™ couplings facilitate the disconnection of up to six individual fluid or air lines. This model includes valves on the insert side and is equipped with the CPC thumb latch. Its snap-in panel mount design ensures a low profile on the front of an equipment panel.
The Twin Tube™ coupling, with a flow diameter of 3/32", allows for the disconnection of two separate fluid lines. This non-valved coupling maintains two independent flow paths within a single unit and also features the CPC thumb latch. The panel mount design ensures a low profile on the front of an equipment panel.
Main Specification:
- Material: Acetal
- Material Finish: Molded Black
- Pressure Range: Vacuum to 100psi, 6.9 bar per line
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Other
- Bag Qty: 5
Click to download : CPC-Multi-Mount-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004735 |
| Manufacturer Code | TTD1002 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
