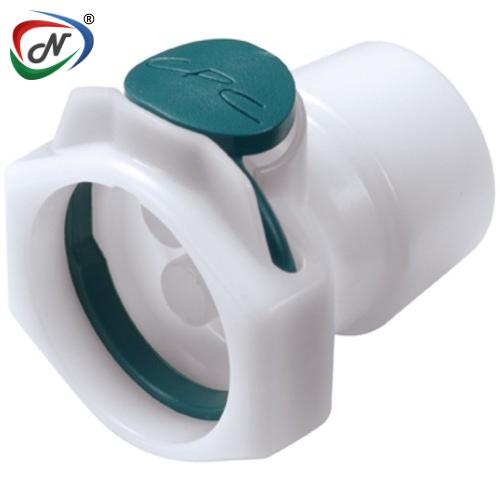

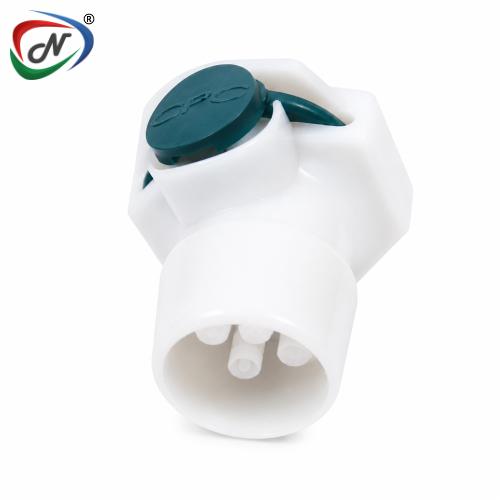

SXF1701 Non-Valved Coupling Body With 1/16 Hose Barb Female Fitting Bodies
#NSSP008387
Product Description
SXF1701 Non-Valved Coupling Body With 1/16 Hose Barb
Female Fitting Bodies
The Sixtube™ coupling offers a convenient quick disconnect
solution for as many as six distinct fluid lines. It is designed with valves on
both sides to ensure optimal design versatility. Equipped with the CPC thumb
latch, the Sixtube allows for the disconnection of up to six lines with a
simple button press. Additionally, the snap-in panel mount design maintains a
sleek profile on the front of the equipment panel.
Main Features & Benefits:
|
Features |
Benefits |
|
Two/six line
connection |
Fast, efficient
operation |
|
Separate flow paths |
Pressure
and/or vacuum in one coupling |
|
Free coupling
rotation (Twin Tube) |
Eliminates kinked
tubing |
|
CPC thumb latch |
One-hand
connection and disconnection |
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 100psi, 6.9 bar per line
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Spring: 316 Stainless Steel
- Valve Options: Non-Valved
- Body Type: Bodies
- Bag Qty: 10
Click to download : CPC-TwinTube-SixTube-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP008387 |
| Manufacturer Code | SXF1701 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
