PMM1204 1/4 PTF NON-VALVED MULTI-MOUNT ACETAL COUPLING BODY

PMM1204 1/4 PTF NON-VALVED MULTI-MOUNT ACETAL COUPLING BODY

Easily connect two, six or even ten separate flow paths with one coupling using CPC multiline fluid connectors. These efficient solutions ensure correct line orientation and come with a variety of terminations, materials and latching options to maximize design flexibility. Multiline fluid connectors from CPC work in harmony to decrease the incidence of misconnections and tidy-up unsightly tangles of tubing.

Main Features:

• Three-to-five-line connection
• Separate flow paths
• Insert is keyed to body
• Separate flow paths
• Acetal or chrome-plated brass

Main Benefits:

• Fast, efficient operation
• Pressure and/or vacuum in one coupling
• Ensures correct line orientation
• Pressure and/or vacuum in one
• Maximize design flexibility

Main Specifications:

•  Material: Acetal
• Material Finish: Natural
• Color: White
• Mounting Option: Panel Mount
• Temperature Range:  -40°F - 180°F (-40°C - 82°C)
• Seal Options: BUNA-N
• Valve Spring: 316 Stainless Steel
• Valve Options: Valved
• Body Type: Inserts
• Bag Qty: 10

COUPLING BODIES - Acetal

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

NOTE: CPC's Ferruleless Polytube Fitting terminations do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

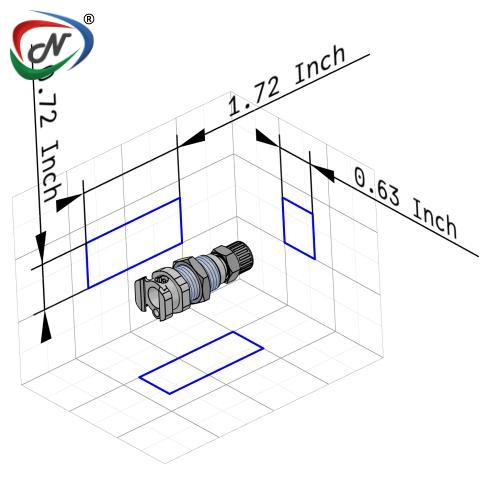

Note: Image is just for ref.
