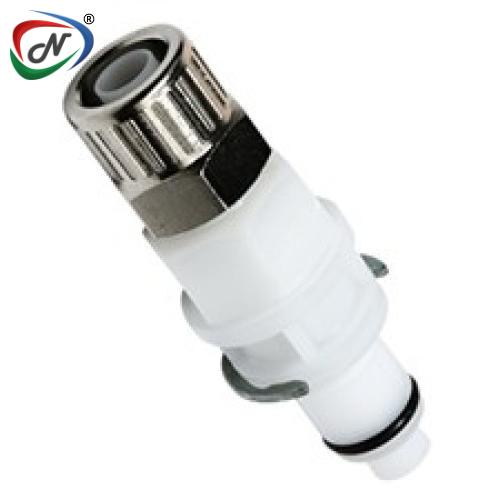

PLMD20006 3/8 PTF Valved Multi-Mount Acetal Coupling Insert
#NSSP006613
Product Description
PLMD20006 3/8 PTF Valved Multi-Mount Acetal Coupling Insert
Main Benefits:
- Three-to-five-line connection
- Separate flow paths
- Insert is keyed to body
- Separate flow paths
- Acetal or chrome-plated brass
Main Features:
- Fast, efficient operation
- Pressure and/or vacuum in one coupling
- Ensures correct line orientation
- Pressure and/or vacuum in one coupling
- Maximize design flexibility
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Free
Floating
- Temperature Range:
-40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Bag Qty: 10
Mating Parts:
- 108900
Click to download : CPC-Multi-Mount-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006613 |
| Manufacturer Code | PLMD20006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
