CQHD06110206 Valved Panel Mount Polypropylene Coupling Body, 3/8 MNPT and FKM (Viton®) O-Ring

#NSSP004740

CQHD06110206 Valved Panel Mount Polypropylene Coupling Body, 3/8 MNPT and FKM (Viton®) O-Ring

Main Features:

Main Benefits:

Main specifications:

COUPLING BODY - Polyproplyene

TERMINATION	COUPLING BODIES - Polyproplyene
TUBING/THREAD SIZE	3/8" Taper
TERMINATION	Male NPT
SHUTOFF	CQHD06110206
A (Height/Diameter)	1.82 (46.2)
B (Total Length)	2.73 (69.3)
C (Hose Barb Length)	1 (25.4)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

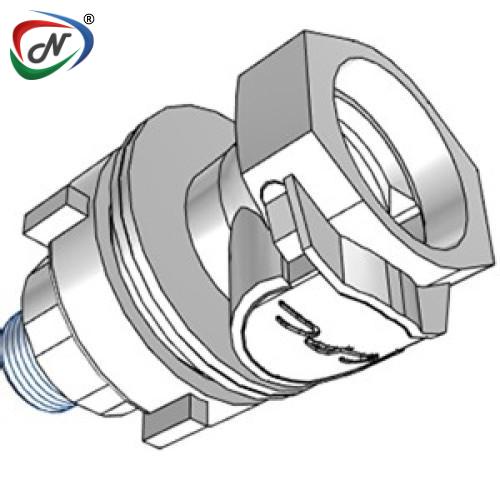

Note: Image is just for ref.

Click to download : CPC-CQH-Spec-Sheet

Medical (Core) & Thermal Industry

NESPL Code	NSSP004740
Manufacturer Code	CQHD06110206
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
