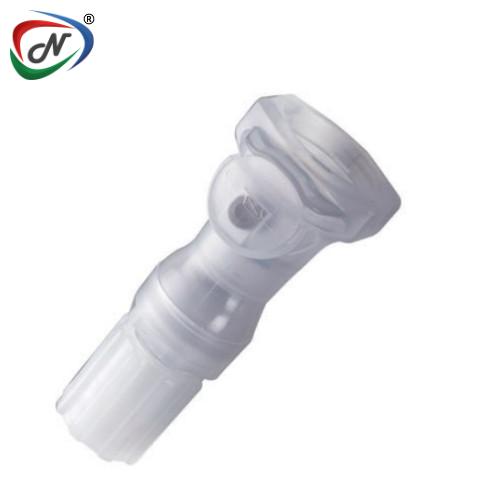

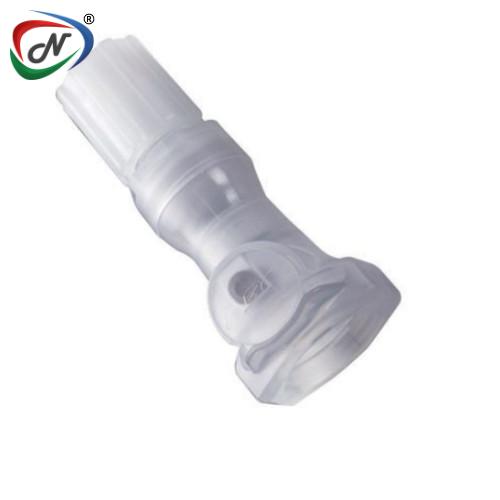

CQHD06100106 Valved In-Line Polypropylene Coupling Body, 3/8 Flare and FKM (Viton®) O-Ring
#NSSP004725
Product Description
CQHD06100106 Valved In-Line Polypropylene Coupling Body, 3/8 Flare and FKM (Viton®) O-Ring
Main Specifications:
- Material: Polypropylene
- Material Finish: Natural
- Pressure Range: Vacuum to 80 psi, 5.5 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: 32°F - 225°F (0°C - 107°C)
- Seal Options: Viton FKM
- Valve Spring: PEEK
- Valve Options: Valved
- Body Type: Bodies
- Spillage: ~1.5 cc (ml)/disconnect (reconnect)
-
Bag Qty: 1
Click to download : CPC-CQH-Spec-SheetAdditional Information
| NESPL Code | NSSP004725 |
| Manufacturer Code | CQHD06100106 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
