ALF51 Luer A-Barb Fitting, 5/32
#NSSP003225
Product Description
ALF51

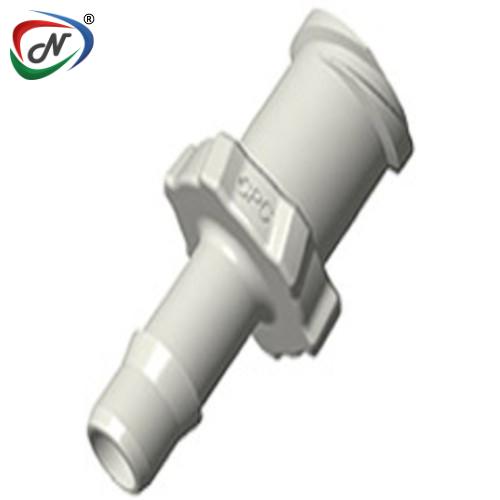

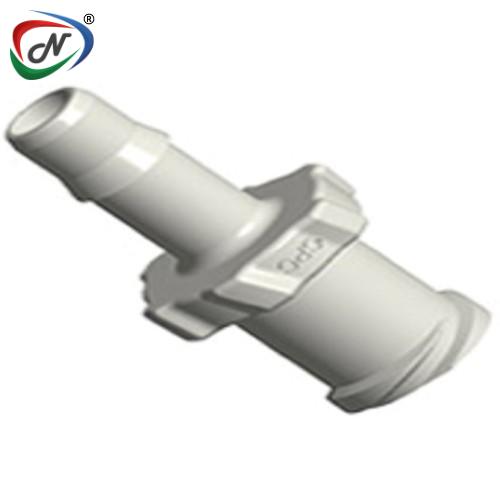

Luer A-Barb Fitting, 5/32" HB x Female Luer, Natural Polypropylene
- FitQuik Connectors are available in white and black nylon as well as natural polypropylene.
- Among the 350 fittings are barbed ends for tube 1/16" to 3/8", threads (Standard Luer, NPT, 1/4-28 UNF and 10-32), caps and plugs.
- As a result, the product can be used in demanding applications.
- In applications without a shutoff valve, Luer Connectors are a common choice for limited-use or disposable applications.
- They mate with luer fittings manufactured to ISO Standards 594-1 and 594-2, and are the preferred option when looking for high-quality, precision molded fluid components.
- FitQuik® Luer fittings are intended for small flow applications, typically less than 1/4".
Main Features:
- Material: Polypropylene
- Material Finish: Natural
- Mounting Option: In-Line
- Temperature Range: -10°F - 150°F (-23°C - 66°C)
- Valve Option: Non-Valved
- Body Type: Luers
- Bag Qty: 100
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : FitQuik_Connectors_from_Colder Products Company Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003225 |
| Manufacturer Code | ALF51 |
| HSN Code | 3917400090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.0004kg |
| Type | Quick Fittings |
