AQX17016 1 Hose Barb AseptiQuik X Body
#NSSP007990
Product Description

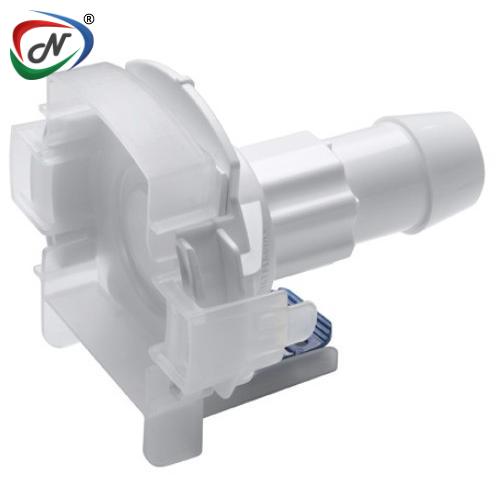

AQX17016 1 Hose Barb AseptiQuik X Body
AseptiQuik® X large format 1" connectors provide quick and easy sterile connections for high flow applications, even in non-sterile environments. AseptiQuik X's “TWIST-PULL-TWIST” design enables users to quickly transfer large volumes of media easily with less risk of operator error. The connector's robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1” sterile connections with the quality and market availability they expect from the leader in single-use connection technology.
Main Features:
- TWIST-PULL-TWIST Design
- Membrane Pull Tabs
- Robust Construction
- Integrated Lock Ring
- CPC Click
Main Benefits:
- Intuitive three-step connection process reduces risk of operator error
Ensure simultaneous and secure removal of both membranes - Repeatable and reliable performance with no additional hardware required
- Secures final connection preventing disassembly
- Audible confirmation of completed assembly steps
Main Specifications:
- Material: Polycarbonate, USP Class VI, ADCF
- Material Finish: Molded White
- Pressure Range: Up to 60 psi, 4.1 bar
- Color: White with blue tab covers
- Mounting Option: Free Floating
- Sterilization Method: Gamma
- Temperature Range: 39°F - 104°F (1°C - 40°C)
- Seal Options: Silicone, platinum-cured
- Valve Options: Non-Valved
- Body type: Bodies
- Bag Qty: 1
Click to download : COLDER_AQX17016 Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007990 |
| Manufacturer Code | AQX17016 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
