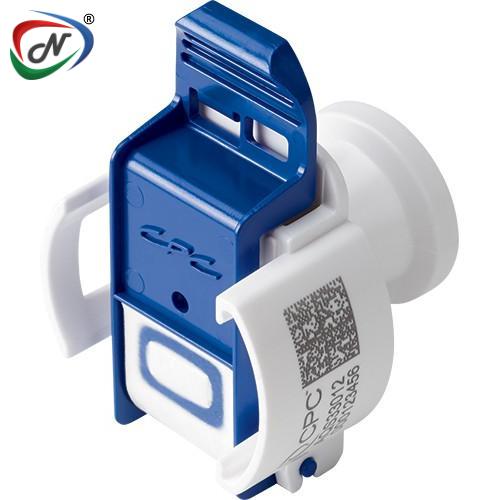

AQS33012 3/4 Sanitary AseptiQuik S Connector
#NSSP007969
Product Description
AQS33012 3/4 Sanitary AseptiQuik S Connector
Medical/ Biopharma Fitting
AseptiQuik® S Connectors Small Format 1/8", 1/4" and 3/8" hose barb and the 1/4" & 3/4" sanitary termination Connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments. The “FLIP-CLICK-PULL” design of AseptiQuik S enables users to quickly transfer small volumes of media easily with less risk of operator error. The connector's genderless and robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1/8", 1/4" and 3/8" sterile connections with the quality and market availability they expect from the leader in single-use connection technology.
Main Specifications:
- Material: Polycarbonate, USP Class VI, ADCF
- Material Finish: Molded White
- Pressure Range:
- Color: White with white pull tab
- Mounting Option: Free Floating
- Sterilization Method: Gamma, autoclave
- Temperature Range:
- Seal Options: Silicone, platinum-cured
- Valve Options: Non-Valved
- Body type: Genderless
- Bag Qty: 5
Main Features & Benefits:
Features | Benefits | ||
Genderless Design | Eases integration of single-use systems with universal mating between G connectors | ||
Robust construction | Repeatable and reliable performance with no additional hardware required | ||
FLIP-CLICK-PULL | Innovative three-step connection process reduces risk of operator error | ||
Integrated pull tab covers | Pull tabs act as protective cover reducing covers part complexity and ensure simultaneous removal of both membranes | ||
CPC Click | Audible confirmation of assembly | ||
Chemical Compatibility | AseptiQuik PPSU enables genderless connection for a greater range of chemical applications. | ||
pH range | AseptiQuik PPSU: Versatile connections across downstream processes with a pH range from 2 to 12 | ||
Click to download : COLDER_AQS33012Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007969 |
| Manufacturer Code | AQS33012 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
