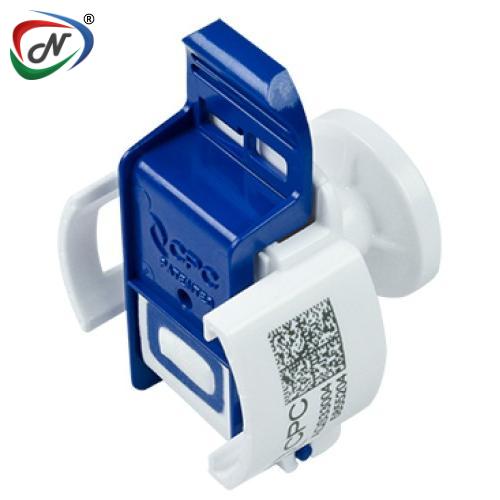

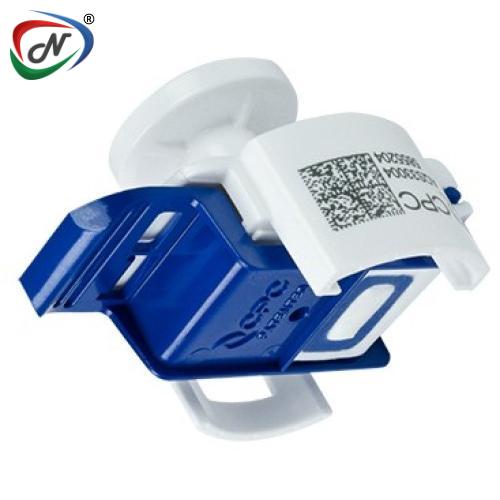

AQS33004 1/4 Sanitary AseptiQuik S Connector

AQS33004 1/4 Sanitary AseptiQuik S Connector

AseptiQuik® S Connectors Small Format 1/8", 1/4" and 3/8" hose barb and the 1/4" & 3/4" sanitary termination Connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments. The “FLIP-CLICK-PULL” design of AseptiQuik S enables users to quickly transfer small volumes of media easily with less risk of operator error. The connector's genderless and robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1/8", 1/4" and 3/8" sterile connections with the quality and market availability they expect from the leader in single-use connection technology.

Main Specifications:

• Material:  Polycarbonate, USP Class VI, ADCF
• Material Finish: Molded White
• Pressure Range: Up to 60 psi, 4.1 bar
• Color: White with white pull tab
• Mounting Option: Free Floating
• Sterilization Method: Gamma, autoclave
• Temperature Range: 34°F - 104°F (1°C - 40°C)
• Seal Options:  Silicone, platinum-cured
• Valve Options:  Non-Valved
• Body type: Genderless
• Bag Qty: 5

Main Features

• Genderless Design
• FLIP-CLICK-PULL
• Integrated Pull Tab Covers
• Robust Construction
• CPC Click
• 1/4" Sanitary termination with straight bore

Main Benefits:

• Ease single-use systems specifications with one part number for both halves
• Intuitive three-step connection process reduces risk of operator error
• Pull tabs act as protective cover reducing part complexity and ensure simultaneous removal of both membranes
• Repeatable and reliable performance with no additional hardware required
• Audible confirmation of assembly
• Minimizes transitional flow disruptions through upstream processing
