AQL17016HT 1

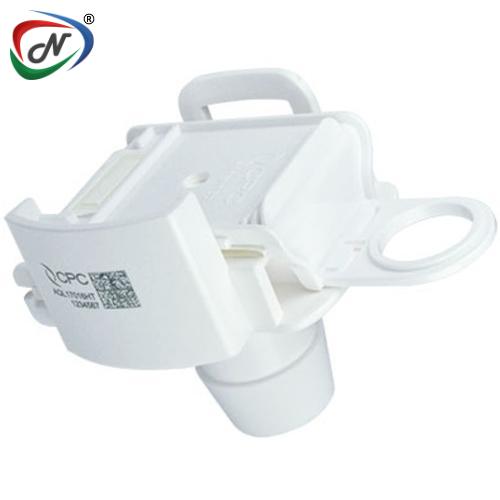

AQL17016HT 1"  Hose Barb AseptiQuik L Connector - High Temperature

Medical/ Biopharma Fitting

Genderless AseptiQuik® Large Format 3/4", 1" and 1½" sanitary Connectors enable quick and easy sterile connections, even in non-sterile environments. Featuring an easy-to-use three step design, AseptiQuik L connectors allow you to transfer media easily with less risk of error. Biopharmaceutical manufacturers benefit from a full range of interchangeable 3/4" to 1½" flow solutions for production environments with the quality and market availability they expect from the leader in single-use connection technology.

Main Features:

• Genderless design
• Robust construction
• FLIP-CLICK-PULL
• Integrated pull tab covers
• CPC Click
• Chemical Compatibility
• pH range

Main Benefits:

• Eases integration of single-use systems with one part number for both halves
• Repeatable and reliable performance with no additional hardware required
• Intuitive three-step connection process reduces risk of operator error
• Pull tabs act as protective cover reducing covers part complexity and ensure simultaneous removal of both membranes
• Audible confirmation of assembly
• AseptiQuik PPSU enables genderless connection for a greater range of chemical applications.
• AseptiQuik PPSU: Versatile connections across downstream processes with a pH range from 2 to 12

MAIN SPECIFICATIONS:

• Material:  Polycarbonate, USP Class VI, ADCF
• Material Finish: Molded White
• Color: White with white pull tab
• Mounting Option: Free Floating
• Sterilization Method: Gamma
• Temperature Range: 34°F - 104°F (1°C - 40°C)
• Seal Options:  Silicone, platinum-cured
• Valve Options: Non- Valved
• Body type: Genderless
• Bag Qty: 1
