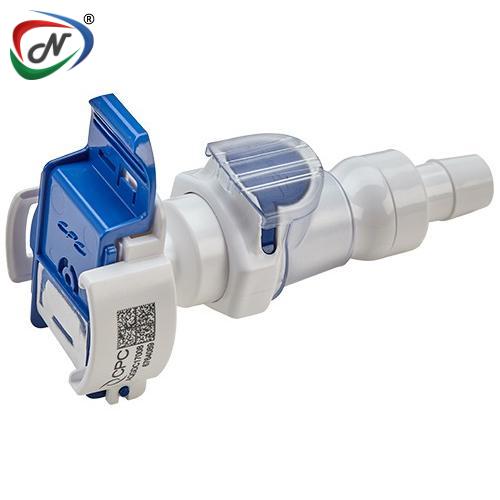

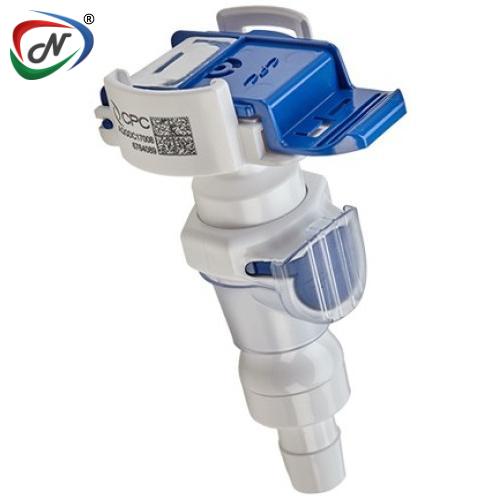

AQGDC17008 1/2 Hose Barb AseptiQuik G with Disconnect

AQGDC17008 1/2 Hose Barb AseptiQuik G with Disconnect

Medical/ Biopharma Fitting

The AseptiQuik® G DC Series Connector is the first all-in-one, genderless, single-use connection technology to offer both a sterile connection and a sterile disconnection. With the AseptiQuik G DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments.

The intuitive Flip - Click - Pull design of the AseptiQuik G DC connector enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple two-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path.

The connector's robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.

Main Specifications:

• Material:  Polycarbonate, USP Class VI, ADCF
• Material Finish: Molded White
• Pressure Range: Up to 60 psi, 4.1 bar
• Color: White with white pull tab
• Mounting Option: Free Floating
• Sterilization Method: Gamma, autoclave
• Temperature Range: 34°F - 104°F (1°C - 40°C)
• Seal Options:  Silicone, platinum-cured
• Valve Options:  Non-Valved
• Body type: Genderless
• Bag Qty: 5

Main Benefits:

• Genderless
• FLIP - CLICK – PULL
• Simple Two-Step Disconnection
• Membrane Pull Tabs
• Automatic Shutoff Valves
• Protective Thumb Latch Cover
• Alloy C-276 internal flow path spring

Main Features:

• Eases single-use systems specifications with one part number for both halves
• Intuitive  three-step connection process reduces risk of operator error
• Maintains media sterility in each half by preventing external organisms from entering the flow path
• Ensure simultaneous and secure removal of both membranes
• Eliminate the need for pinch clamps or tube welders
• Eliminates accidental disconnects
• Enables broader application compatibility
