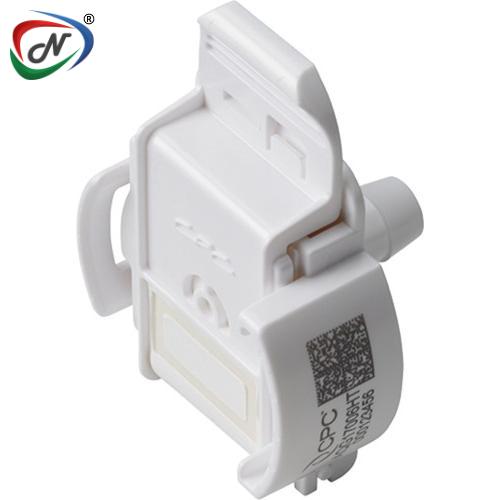

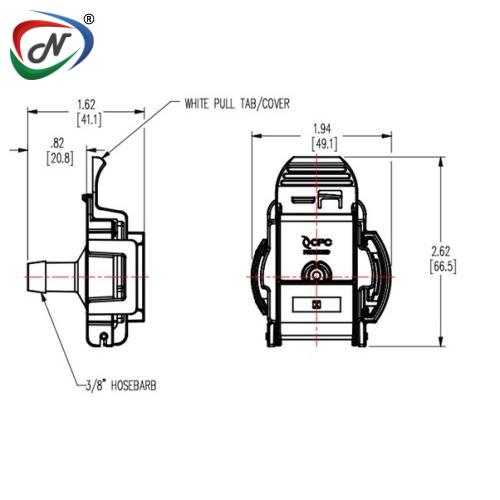

AQG17006HT 3/8 Hose Barb AseptiQuik G Connector - High Temperature

AseptiQuik® G Connectors provide quick and easy sterile connections, even in non-sterile environments—a critical capability for biopharmaceutical manufacturers. Featuring an easy to use three step design and a wide range of options—including 1/8- to 1 1/2 -inch sizes and genderless connections—the AseptiQuik family allows you to transfer media easily with less risk of error. Their robust, reliable performance eliminates the need for clamps, fixtures or tube welders, giving you sterile, high quality single-use connections every time.

Main Specifications:

• Material:  Polycarbonate, USP Class VI, ADCF
• Material Finish: Molded White
• Pressure Range: Up to 60 psi, 4.1 bar; Up to 75 psi, 5.1 bar for 48 hours
• Color: White with white pull tab
• Mounting Option: Free Floating
• Sterilization Method: Gamma, autoclave
• Temperature Range: 34°F - 104°F (1°C - 40°C)
• Seal Options:  Silicone, platinum-cured
• Valve Options:  Non-Valved
• Body type: Genderless
• Bag Qty: 5

  Features		Benefits
  	Genderless Design		Eases integration of single-use systems with universal mating between G connectors
  	Robust construction		Repeatable and reliable performance with no additional hardware required
  	FLIP-CLICK-PULL		Innovative three-step connection process reduces risk of operator error
  	Integrated pull tab covers		Pull tabs act as protective cover reducing covers part complexity and ensure simultaneous removal of both membranes
  	CPC Click		Audible confirmation of assembly
  	Chemical Compatibility		AseptiQuik PPSU enables genderless connection for a greater range of chemical applications.
  	pH range		AseptiQuik PPSU: Versatile connections across downstream processes with a pH range from 2 to 12
