AQCDC17004 1/4 Hose Barb AseptiQuik Disconnect Body
#NSSP007911
Product Description

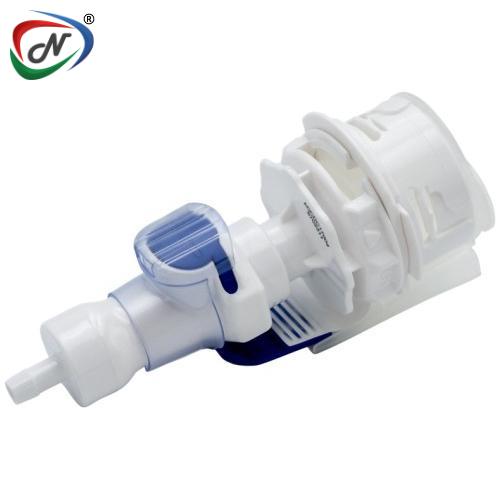

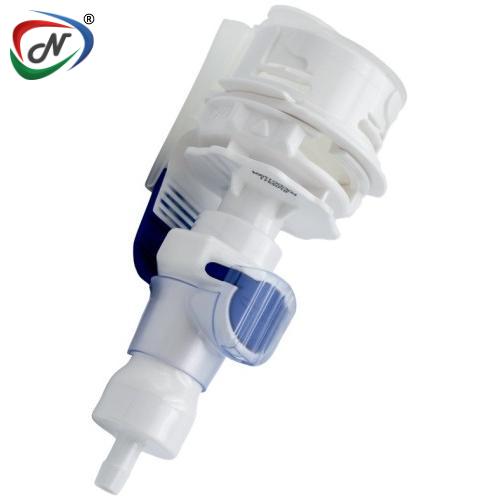

AQCDC17004 1/4 Hose Barb AseptiQuik Disconnect Body
Medical/ Biopharma Fitting
AseptiQuik® C DC Connector is the first all-in-one single-use connection technology to offer both a sterile connection and a sterile disconnection. With the new AseptiQuik C DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments.
AseptiQuik C DC's intuitive CLICK-PULL-TWIST design enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple one-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path.
The connector's robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.
Main Specifications:
- Material: Polycarbonate, USP Class VI, ADCF
- Material Finish: Molded White
- Pressure Range: Up to 60 psi, 4.1 bar
- Color: White with blue pull tab
- Mounting Option: Free Floating
- Sterilization Method:
- Temperature Range: 39°F - 104°F (4°C - 40°C)
- Seal Options: Silicone, platinum-cured
- Valve Options: Valved
- Body type: Bodies
- Bag Qty: 5
|
Features |
Benefits |
||
|
CLICK-PULL-TWIST
Design |
Intuitive
three-step connection process reduces risk of operator error |
||
|
Simple
One-Step Disconnection |
Maintains
media sterility |
||
|
Membrane Pull Tabs |
Ensure simultaneous and
secure removal of both membranes |
||
|
Automatic
Shutoff Valves |
Eliminate the
need for pinch clamps or tube welders |
||
|
Robust Construction |
Integrated lock ring
and innovative seal technology ensure reliable performance |
||
|
Market
Availability |
Open access
through multiple supply chain partners |
||
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007911 |
| Manufacturer Code | AQCDC17004 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
