3/8 Hose Barb Class VI Polycarbonate Coupling Body
#NSSP007899
Product Description

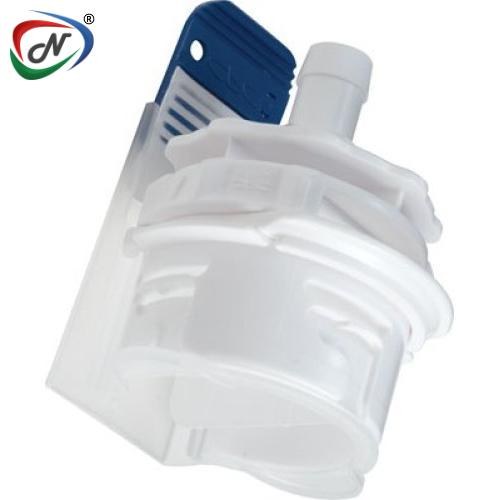

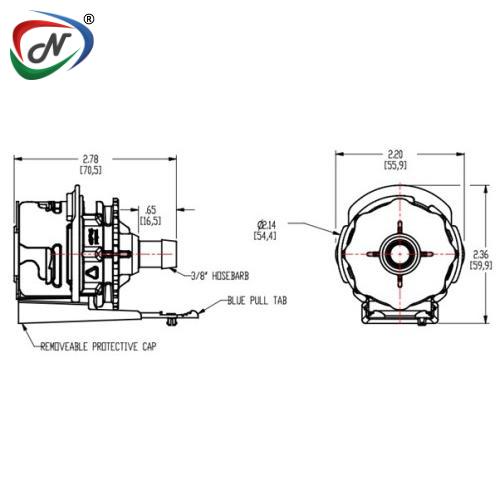

AQC17006 3/8 Hose Barb Class VI Polycarbonate Coupling Body
CPC's SaniQuik™ connection answers the question of how to integrate single-use components with your existing stainless processing equipment. This integral sanitary termination attaches to hard-plumbed systems with tri-clover clamps. Once attached it permits quick and easy connection to single-use bag systems, manifolds or tube sets with Colder disposable coupling bodies
Features | Benefits |
3/4" and 1-1/2" sanitary terminations | Connect to hard plumbed systems with sanitary standard gaskets and tri-clover clamps |
Compatible with MPC & MPX Series | Quick and easy connections to industry standard plastic couplings on single-use bag and tube sets |
Integral coupling adaptor | Disconnecting coupling reduces sanitary gasket replacement |
BSE/TSE free materials | Meet ADCF requirements |
Main Specifications
- Material: Polycarbonate,
USP Class VI, ADCF
- Material Finish: Molded White
- Pressure Range: Up to 60 psi, 4.1 bar
- Color: White with blue pull tab
- Mounting Option: Free Floating
- Sterilization Method:
Gamma
- Temperature Range: 39°F - 104°F (4°C - 40°C)
- Seal Options: Silicone,
platinum-cured
- Valve Options: Non-Valved
- Body type: Bodies
Click to download : CPC-SaniQuik-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007899 |
| Manufacturer Code | AQC17006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
