AQC17008 1/2 Hose Barb Class VI Polycarbonate Coupling Body
#NSSP007901
Product Description

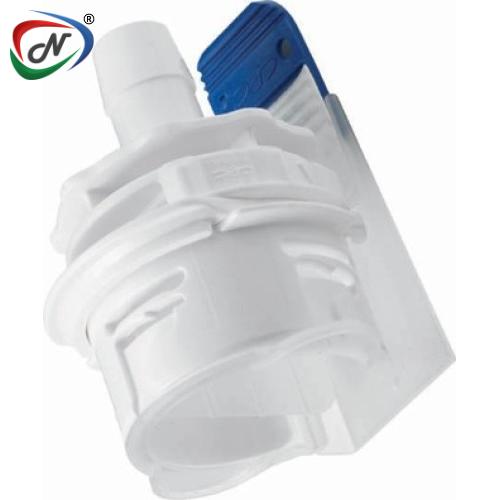

AQC17008 1/2 Hose Barb Class VI Polycarbonate Coupling Body
Medical/ Biopharma Fitting
AseptiQuik® C Connectors provide quick and easy sterile connections, even in non-sterile environments. AseptiQuik's “CLICK-PULL-TWIST” design enables users to transfer media easily with less risk of operator error. The connector's robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can make sterile connections with the quality and market availability they expect from the leader in single-use connection technology.
Features | Benefits | ||
CLICK-PULL-TWIST Design | Intuitive three-step connection process reduces risk of operator error | ||
Membrane Pull Tabs | Ensure simultaneous and secure removal of both membranes | ||
Robust Construction | Repeatable and reliable performance with no additional hardware required | ||
Integrated Lock Ring | Secures final connection preventing disassembly | ||
CPC Click | Audible confirmation of completed assembly steps | ||
Market Availability | Open access through multiple supply chain partners | ||
Main Specifications:
- Material: Polycarbonate, USP Class VI, ADCF
- Material Finish: Molded White
- Pressure Range: Up to 60 psi, 4.1 bar
- Color: White with blue pull tab
- Mounting Option: Free Floating
- Sterilization Method: Gamma
- Temperature Range: 39°F - 104°F (4°C - 40°C)
- Seal Options: Silicone, platinum-cured
- Valve Options: Non-Valved
- Body type: Bodies
- Bag Qty: 5
Click to download : CPC-AseptiQuik-C-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007901 |
| Manufacturer Code | AQC17008 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
