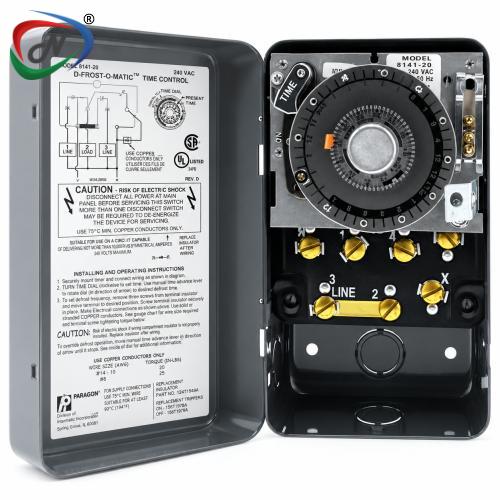

8141-20CM Commercial Defrost Control – 208/240V, 60Hz

8141-20CM Commercial Defrost Control – 208/240V, 60Hz | 1 N.O. / 2 N.C.

The 8141-20CM Commercial Defrost Control is a heavy-duty mechanical defrost timer designed for commercial refrigeration systems, including walk-in freezers, refrigerated cases and condensing units.

Designed for automatic management of refrigeration defrost cycles, the control uses time-initiated defrost operation with temperature- or pressure-based termination. This allows the refrigeration system to begin defrost at predetermined intervals while an external temperature or pressure control can terminate the defrost cycle when the required condition is reached.

Operating from a 208–240V AC, 60Hz timing motor, the 8141-20CM features a 1 Normally Open (N.O.) and 2 Normally Closed (N.C.) contact configuration. Its heavy-duty switching capability makes it suitable for demanding commercial refrigeration applications.

The control can be used with various defrost methods, including electric heat, hot-gas defrost and compressor/off-cycle defrost systems.

Main Features:

• ❄️ Commercial Refrigeration Defrost Control – Designed for automatic defrost management in commercial refrigeration equipment.
• ⚡ 208–240V AC Operation – Equipped with a 208–240V, 60Hz synchronous timing motor.
• 🔄 Time-Initiated Defrost – Automatically starts the defrost cycle according to the programmed schedule.
• 🌡️ Temperature / Pressure Termination – Supports termination through an external temperature- or pressure-sensing device.
• 🔌 1 N.O. / 2 N.C. Switching – Provides one normally-open and two normally-closed switching contacts.
• 💪 Heavy-Duty Contact Rating – Rated up to 40A and 2 HP for suitable refrigeration loads.
• ⏱️ Adjustable Defrost Scheduling – Supports approximately 1–6 defrost cycles per day, with a minimum interval of 4 hours between successive operations.
• 🛡️ Backup Defrost Termination – Mechanical time-based backup termination helps prevent an excessively long defrost cycle.
• ⚙️ Heavy-Duty Mechanical Design – Synchronous drive motor and positive switching mechanism provide dependable operation.
• 🏗️ Metal Enclosure – Heavy-duty steel enclosure helps protect the control in commercial installations.

Technical Specifications

Main Applications:

The 8141-20CM Defrost Control is suitable for use in:

• 🧊 Walk-in freezers
• ❄️ Commercial refrigerators
• 🏪 Refrigerated display cases
• 🥶 Cold-storage equipment
• ⚙️ Refrigeration condensing units
• 🔥 Electric heater defrost systems
• ♨️ Hot gas defrost systems
• 🔄 Compressor/off cycle defrost applications
• 🏭 Commercial refrigeration installations

How It Works

During normal refrigeration operation, the mechanical timer advances continuously. At a preset time, the control switches the connected refrigeration system into its defrost cycle.

The defrost period can then be terminated by an external temperature or pressure control when the required defrost condition has been reached. A mechanical timed backup provides an additional method of ending the defrost cycle if necessary.

This combination helps reduce unnecessary defrost operation while supporting reliable removal of frost and ice from refrigeration evaporator systems.

Main Benefits:

• Helps maintain efficient evaporator performance.
• Automates routine refrigeration defrost cycles.
• Reduces excessive frost and ice accumulation.
• Supports multiple commercial defrost methods.
• Temperature/pressure termination can prevent unnecessary defrost duration.
• Heavy-duty switching capacity for commercial equipment.
• Adjustable operation for different refrigeration requirements.
• Suitable for replacement and refrigeration maintenance applications.
