Fluid-o-Tech PA601 High-Volume Rotary Vane Pump – 600 L/h

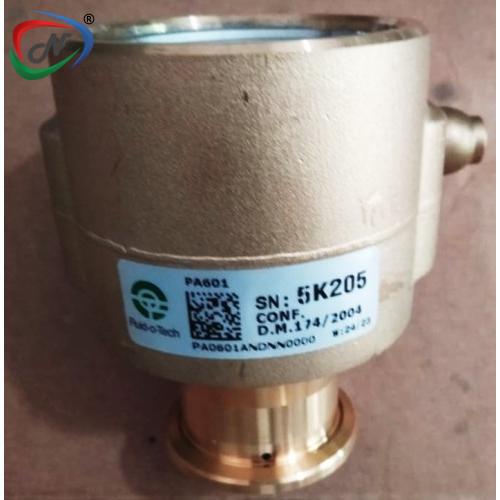

The Fluid-o-Tech PA601 (PA0601ANDNN0000) is a high-volume positive-displacement rotary vane pump engineered for applications requiring reliable liquid transfer at relatively low flow rates and high pressure.

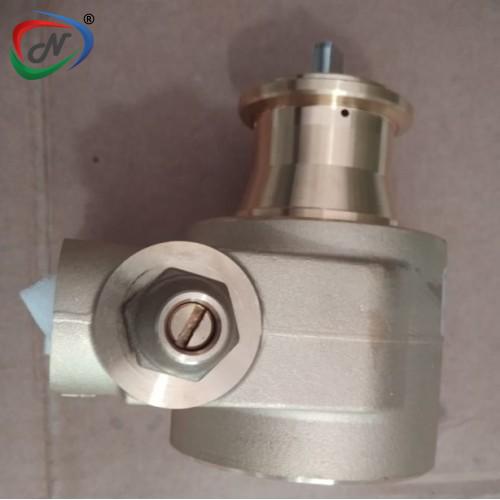

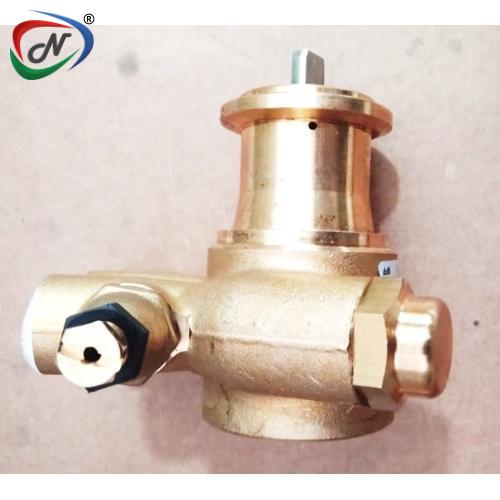

This version features a brass pump housing, clamp mounting, standard bypass, solid brass valve, 1/2" NPT inlet and outlet connections, and a parallel shaft. Its nominal flow capacity is 600 litres per hour at 1450 rpm, making it suitable for beverage equipment, water-treatment systems, cooling equipment and other demanding fluid-handling applications.

The pump uses a durable AISI 303 stainless-steel rotor together with a carbon-graphite pumping chamber and vanes. Carbon graphite provides good wear characteristics and self-lubricating properties when handling suitable liquids.

Key Features

• Positive-displacement rotary vane pump
• High-volume PA601 configuration
• Nominal flow rate: 600 L/h
• Rated flow speed: 1450 rpm
• Robust brass housing
• AISI 303 stainless-steel rotor
• Carbon-graphite pumping chamber and vanes
• Standard integrated bypass
• Solid valve in brass
• 1/2" NPT inlet and outlet ports

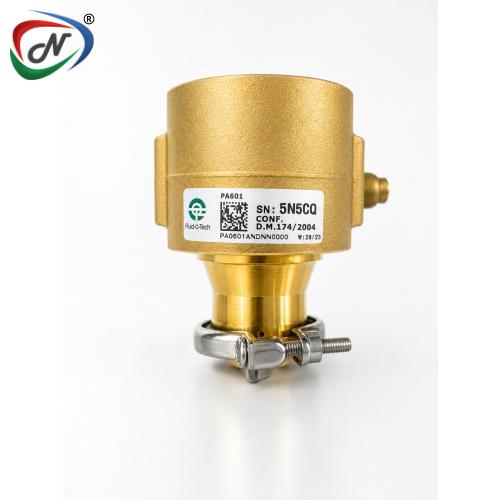

• Clamp-mount construction for direct motor installation
• Parallel shaft
• Maximum operating liquid temperature: 70°C (158°F)
• Designed for water and compatible moderately aggressive liquids
• Suitable for low-flow, high-pressure applications

Technical Specifications

Performance

The PA601 provides a nominal displacement capacity of 600 L/h at 1450 rpm.

As a positive-displacement rotary vane pump, it is particularly suitable for applications where controlled liquid delivery and pressure generation are required.

Nominal flow: 600 L/h
Equivalent nominal flow: approximately 10 L/min
Equivalent nominal flow: approximately 2.64 US GPM

Actual operating flow and pressure depend on motor speed, system back pressure, fluid properties, installation conditions and pump condition.

Sure — here’s the Typical Applications section with suitable icons for website display:

Main Applications:

The Fluid-o-Tech PA601 is suitable for a wide variety of commercial and industrial fluid-handling systems, including:

• 🥤 Beverage Vending Machines
• 🥤 Post-Mix Beverage Dispensers
• ☕ Espresso & Commercial Coffee Equipment
• 🚰 Water Dispensers
• 💧 Water-Treatment Equipment
• 🔄 Reverse-Osmosis (RO) Systems
• 💧 Deionization (DI) & Ion-Exchange Systems
• 🧪 Ultrafiltration Systems
• ❄️ Cooling Systems
• 📈 Pressure Booster Systems
• ⚙️ OEM Liquid-Transfer Equipment

Main Benefits:

Reliable positive-displacement operation
Rotary vane technology provides controlled fluid transfer and is particularly useful where pressure must be generated from a compact pump.

High 600 L/h nominal capacity
The PA601 provides substantially higher flow than smaller PA-series configurations while retaining a compact rotary-vane design.

Heavy-duty construction
Brass, stainless steel and carbon-graphite internal components provide a robust construction for demanding equipment applications.

Compact motor integration
The clamp-mount configuration enables direct connection to compatible motors, simplifying OEM equipment design.

Built-in pressure management
The standard bypass configuration helps protect and regulate the hydraulic circuit under changing operating conditions.

Versatile connections
Standard 1/2" NPT ports facilitate integration into a wide range of fluid systems.
