9.0.99.64G FLOWMETER LATAMID LOW PRESSURE FMPL-HBP
#NSSP002992
Product Description

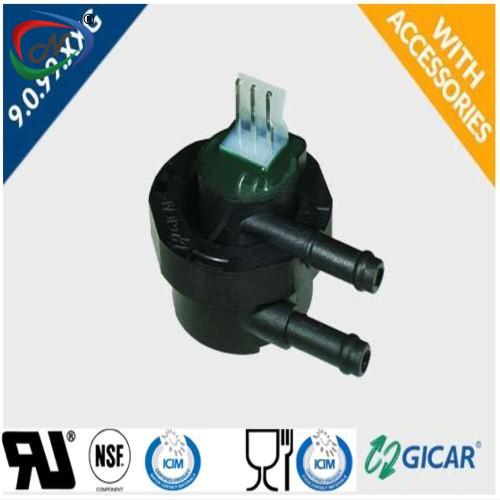

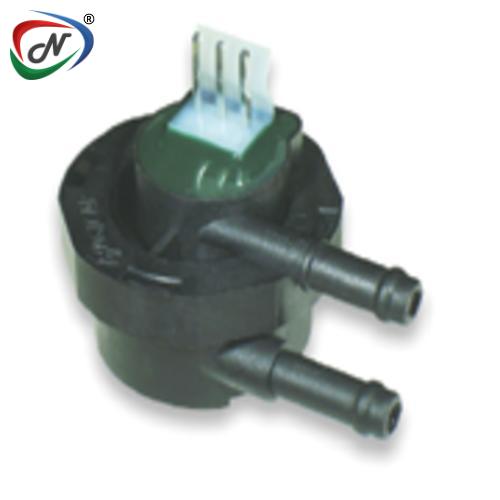

9.0.99.64G FLOWMETER LATAMID LOW PRESSURE FMPL-HBP d.1.8"OUT-+" FISSAGGIO A OCCHIELLO (H2O IN-OUT°)
Main Specifications:
|
Max dimensions (mm) |
70 x 50 x 55 |
|
Working orientation |
Horizontal |
|
Max pressure |
1 bar |
|
Max working temp. |
60 °C |
|
Fixing method |
Pin or eyelet |
|
Fastening: |
Rubberholder ext. 7 mm for tubes int. 5 mm |
|
Nozzle diameter |
1.2 – 1.8 – 3.0 |
|
Power supply |
4.5 24VDC |
|
Max. Consumption |
15 mA |
|
Max (external) output voltage |
25 VDC |
|
Max output current |
25 mA |
|
Electrical output: |
Polarized 2.2k , 1.2k or Open Collector |
|
Electrical connection |
3 ways connector |
|
Accuracy |
+/- 2% |
|
Repeatability |
Better than 0,2% - |
Coffee Industry
Additional Information
| NESPL Code | NSSP002992 |
| Manufacturer Code | 9.0.99.64G |
| HSN Code | 90261010 |
| Manufacturer | GICAR |
| Type | Parts / Accessories |
