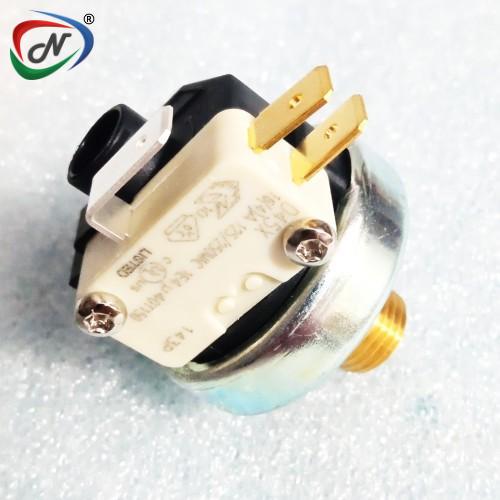

Steam Pressure Switch LF25

#NSSP003542

Product Description

Steam Pressure Switch LF25 1.5 BAR -125°C ,Threads G 1/4

Main Features:

  • Pressure switches designed for higher current capacity are LF25 pressure switches.
  • The pressure control system is widely used in steam cleaners, steam sadirons, and other pressure control systems.
  • The switch provides SPST or SPDT contact forms and a mechanical differential or hysteresis (also known as mechanical differential).
  • High-quality miniature snap-action switches are used in the LF25 switch.
  • Switches operate via diaphragms.
  • The diaphragm material can be chosen according to the operating medium, temperature range, and other factors.
  • Designers can adjust actuation points during specification development.

Main Specifications:

Model

LF25

Medium

Non-hazardous gas, liquid, or steam

Operating Pressure

0.2-0.6 bar

0.5-1.5Bar

1.2-2.5bar

1.5-4bar

3-7bar

5-9bar

Proof Pressure

3bar

4bar

5bar

6bar

8bar

10bar

Differential

0.2±0.1bar

0.2±0.1bar

0.2±0.1bar

0.25±0.15bar

0.35±0.20bar

0.6±0.20bar

Operating Temperature Range

+85?/ +125?Maximum

Contact Arrangement

SPST or SPDT

Electric Rating

SPST or SPDT/ Normal Close: 16(4) A-250VAC; Other ratings are available on request

Terminals

6.35 or 4.88mmmale Q.C.; Insulation cover available as necessary

Connection

NPT 1/8-27 or NPT1/4-18 male, G1/8 male

Conversion?1Kgf/cm2=14.2PSI 1Bar=14.5PSI



Read More

Coffee Industry

Additional Information

NESPL Code NSSP003542
Manufacturer Code NESPL-LF25 PRESSURE SWITCH
HSN Code 90262000
Manufacturer Nespl
Type Switch
