703803 - 98 MM PREMIUM CAST STEEL BURRSS FOR MAHLKÖNIG EK43: TURKISH FINE GRINDING
Mahlkönig 703803 98 mm Premium Cast Steel Burr Set for EK43 – Turkish Fine
Grinding

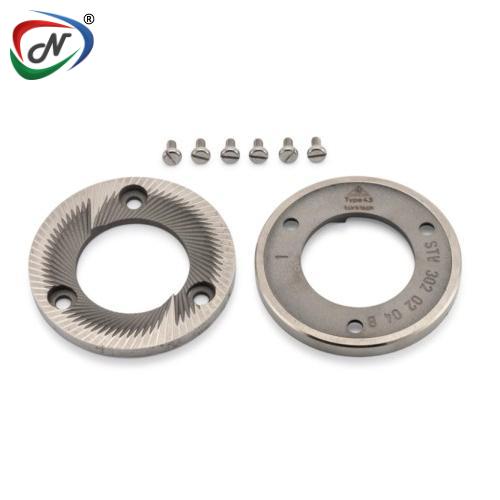

The Mahlkönig 703803 98 mm Premium Cast Steel Burr Set
is a genuine OEM replacement burr set specifically engineered for Turkish
fine grinding on the Mahlkönig EK43 series. Its specialized burr geometry
is optimized to produce the extremely fine and uniform particle size required
for traditional Turkish coffee preparation.
Manufactured from hardened premium cast steel, the
burrs feature a glass bead blasted finish for effective deburring and
reduced burr settling. With a hardness of 64–66 HRC and an approximate
grind life of 6,000 kg at a medium setting, these burrs are designed for
demanding commercial coffee-grinding applications.
Key Features:
Technical Specifications:
|
Specification |
Details |
|
Brand |
Mahlkönig |
|
Part Number |
703803 |
|
Old Article Number |
303939 |
|
Product Type |
Burr Set |
|
Burr Diameter |
98 mm |
|
Material |
Hardened
Premium Cast Steel |
|
Hardness |
64–66 HRC |
|
Finish |
Glass Bead
Blasted |
|
Grinding Type |
Turkish Fine Grinding |
|
Grind Life |
Approx. 6,000
kg |
|
Weight |
Approx. 0.61 kg |
|
Application |
Commercial
Coffee Grinder |
|
OEM |
Yes |
|
Country of Manufacture |
Germany |
Turkish Fine Grinding Performance
The 703803 uses a specialized cutting geometry intended to
achieve the exceptionally fine particle size needed for Turkish coffee.
Mahlkönig's EK43 platform specifies approximately 10–12 g/sec grinding
capacity at Turkish-fine settings, compared with approximately 19–21 g/sec for
standard filter grinding. Actual performance varies according to coffee, roast
and grind setting.
Why Choose 703803 Burrs?
These burrs are particularly suitable when the EK43 is being
configured for:
For standard grinding, Mahlkönig uses the separate 703804
98 mm Premium Cast Steel Burr set.
Coffee Industry
| NESPL Code | NSSP008530 |
| Manufacturer Code | 703803 |
| Manufacturer | Hemro |
| Type | Coffee Machine Parts |
