Lefoo DC Motor Peristaltic Pump LFP502DB

#NESPLLF001

Product Description

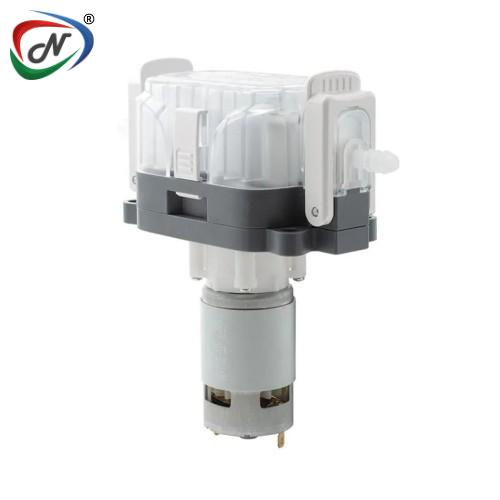

Lefoo DC Motor Peristaltic Pump LFP502DB (Flow range: 950-2950ml/min)

The LEFOO LFP502DB High Pressure DC Peristaltic Pump is engineered to provide dependable liquid transfer and precise dosing capabilities. Offering flow rates spanning 950 to 2950 ml/min, maximum outlet pressure of 0.1 MPa (15 psi), and selectable 12V DC or 24V DC power configurations, this unit ensures consistent performance in demanding fluid management applications.

Incorporating self-priming functionality, adaptable tubing compatibility, and sterile fluid transfer mechanisms, the LFP502DB proves exceptionally suitable for chemical metering systems, aqueous treatment facilities, industrial sanitation equipment, fabric printing apparatus, and original equipment manufacturer fluid handling solutions.

Main Features:

Introduces an integrated dual pump head configuration.
Demonstrates superior flow precision and exceptional sealing integrity.
Incorporates a dependable and efficient quick-disconnect mechanism.
Minimizes spatial requirements for installation and arrangement.
Offers adaptable mounting alternatives.

Main Specifications:

Item	Details
Model	P502DB
Installation Method	Body Holes (Expandable)
Motor Type	Brush DC motor
Control Method	Power-on operation
Function	Fixed flow rate
Working Voltage	DC12V, DC24V
Power	≤28W
Weight	740 g
Working Environment	Temperature: 0-45℃; Relative Humidity: <85%RH
Rollers	Standard with 3 rollers + 3 training wheels

FLOW RATE: ml/min

Voltage	Flow Range	Tube Size	Tube Type
DC12V, DC24V	950 ~ 2400	35#	BPT Tube / Silicone Tube / A60-F / Viton Tube
DC12V, DC24V	1200 ~ 2950	36#	BPT Tube / Silicone Tube / A60-F / Viton Tube
