Lefoo DC Motor Peristaltic Pump LFP404DB

#NESPLLF004

Product Description

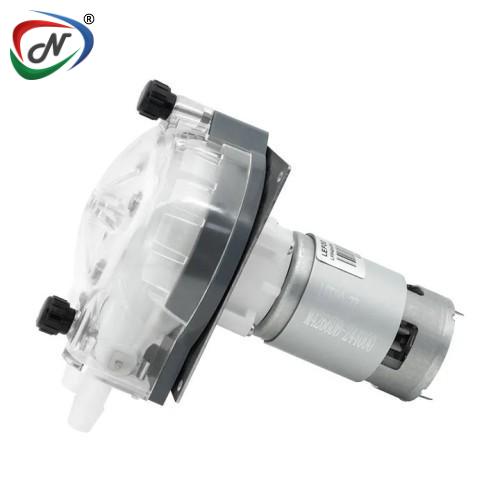

Lefoo DC Motor Peristaltic Pump LFP404DB (Flow range: 1965-4200ml/min)

The LEFOO LFP404DB represents a high-capacity DC motor peristaltic pump engineered to facilitate dependable liquid conveyance and precise dosing applications, operating within a flow range of 1965 to 4200 ml/min. This apparatus incorporates self-priming functionality, facilitates straightforward tube replacement procedures, and ensures uncontaminated fluid management, rendering it particularly suitable for beverage dispensing systems, industrial cleaning apparatus, water treatment facilities, textile printing machinery, chemical transfer operations, and automated processes.

Main Features:

Substantial flow capacity
Minimal operational noise
Extended operational lifespan
Capable of transporting high-viscosity media in substantial volumes

MAIN SPECIFICATIONS:

Item	Details
Model	P404DB
Installation Method	Stainless steel mounting plate as standard (customizable)
Motor Type	Brush DC motor
Control Method	Power-on operation
Function	Fixed flow rate
Working Voltage	DC12V, DC24V
Power	≤36W
Weight	650 g
Working Environment	Temperature: 0-45℃; Relative Humidity: <85%RH
Rollers	Standard with 2 rollers + 2 training wheels

FLOW RATE: ml/min

Voltage	Flow Range	Tube Size	Tube Type
DC12V, DC24V	1965 ~ 2900	35#	BPT Tube / Silicone Tube / A60-F / Viton Tube
DC12V, DC24V	2800 ~ 4200	36#	BPT Tube / Silicone Tube / A60-F / Viton Tube
