AAG00017 -F4040A, 1/4

#NSSP008033

Product Description

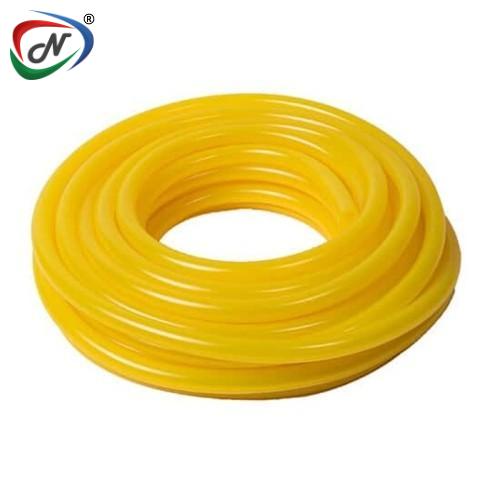

AAG00017 -F4040A, 1/4" ID X 3/8" OD, WALL: 1/16" (50 Fts.)

The AAG00017 - F4040A tubing features a 1/4" inner diameter, 3/8" outer diameter, and 1/16" wall thickness, offering a balanced combination of flexibility and durability. Ideal for fluid or gas transfer, it is made from chemical-resistant material, ensuring reliable performance in various industrial or lab environments. Its smooth internal surface supports consistent flow, while the standard sizing allows easy compatibility with most fittings. This tubing is perfect for low-pressure systems requiring precision and long-lasting performance.

Main Features:

1/4" Inner Diameter x 3/8" Outer Diameter – Standard sizing for common fittings.
1/16" Wall Thickness – Balances flexibility with strength.
Chemical-Resistant Material – Suitable for various fluids and gases.
Flexible Construction – Easy to route in tight spaces.
Smooth Internal Surface – Promotes consistent, unobstructed flow.

Main Specifications:

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Bend Radius (in.)	Max. Suggested Working Pressure at 73 deg. F (PSI)*	Vacuum Rating at 73 deg. F (in. Hg)	Length
AAG00700	.080"	.140"	.030"	1/4"	40 PSI	29.9 in. Hg	50ft
AAG00165	3/32"	3/16"	3/64"	1/4"	50 PSI	29.9 in. Hg	50ft
AAG00007	1/8"	1/4"	1/16"	3/8"	50 PSI	29.9 in. Hg	50ft
AAG00012	3/16"	5/16"	1/16"	5/8"	35 PSI	29.9 in. Hg	50ft
AAG00017	1/4"	3/8"	1/16"	1"	30 PSI	22.0 in. Hg	50ft
AAG00022	5/16"	7/16"	1/16"	1-3/8"	25 PSI	14.0 in. Hg	50ft
