3d5 Maestro Deluxe – WiFi or Bluetooth® Connection
#GN16
Product Description

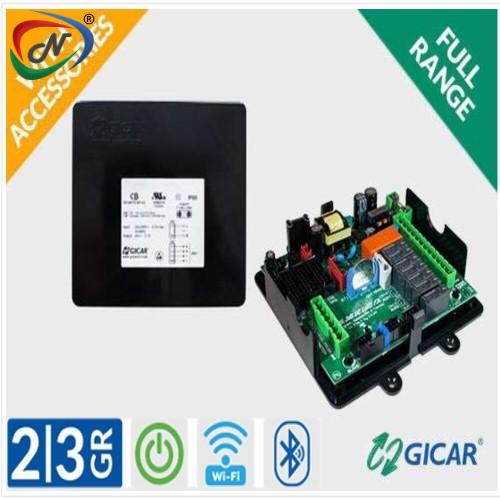

3d5 Maestro Deluxe – WiFi or Bluetooth® Connection
The 3d5 Maestro DELUXE metering, suitable for coffee machines up to 3 groups + tea
Features:
- Volumetric control of two different coffee doses and of the “continuous” function for each group
- 3 timed tea doses control
- Steam, coffee and tea doses simultaneous dispensation
- Doses programming in simulation through keyboard
- Boiler and/or tank levels controls (filling up and minimum)
- Dispensing progress visualization (chrono function)
- Heating survey through external SSR with P.I.D. algorithm (Proportional-Integral-Derivative)
- Control of 2 NTC temperature probes (boiler and steam wand)
- Serial transmission with Gicar accounting devices / WiFi or Bluetooth® connection
- Ready for software updating through On Board Programming
- “Slave” output for connection to an external expansion
- Ready for connection to a 16x2 characters LCD display for functional cycles visualization, alarm signalling, dispensations counting etc.
Technical Specifications:
|
SUPPLY VOLTAGE |
|
100-240 Vac - 50/60 Hz |
|
OUTPUT TERMINALS |
|
Connectors |
|
OPERATING TEMPERATURE |
|
Up to 60 °C |
|
HOUSING |
|
UL94 V0 material |
Coffee Industry
Additional Information
| NESPL Code | GN16 |
| Manufacturer Code | . |
| Manufacturer | GICAR |
| Type | Parts / Accessories |
