LFP5024-1 Brushless DC Centrifugal Pumps

#NESPLBLDC003

Product Description

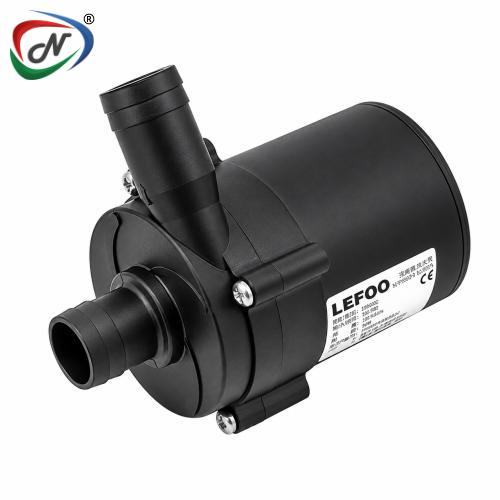

LFP5024-1 Brushless DC Centrifugal Pumps

The LEFOO LFP5024-1 Series offers compact 24V DC brushless centrifugal water pumps for circulation and transfer applications. Available in six models, the series provides maximum flow rates of 8–13 L/min and maximum delivery heads of 4–15 metres, depending on the model.

The LEFOO LFP5024-1 Brushless DC Centrifugal Pump Series is designed for water circulation in compatible HVAC, refrigeration, industrial cooling, and OEM equipment.

Optional PWM or 0–5V speed regulation enables pump operation to be adjusted through a compatible controller. An optional FG signal provides motor-speed feedback for system monitoring.

The series operates on a rated 24V DC supply and handles water temperatures up to 60°C. Multiple performance variants allow selection according to the equipment’s required flow and delivery head.

Main Features:

24V DC brushless motor.

Six models with different performance ratings.

Optional PWM and 0–5V speed regulation.

Optional FG motor-speed feedback.

Class F insulation.

IP55 or IP68 protection options.

Standard DN12 inlet and DN8 outlet.

Manufacturer-listed lifetime of 20,000 hours, subject to operating conditions.

Main Specifications:

Parameter	Specification
Brand	LEFOO
Series	LFP5024-1
Pump type	Brushless DC centrifugal
Rated voltage	24V DC
Operating voltage range	16–32V DC
Maximum flow range	8–13 L/min, model dependent
Maximum delivery head range	4–15 m, model dependent
Maximum current range	0.7–2.1 A
Maximum power range	16.8–50.4 W
Ambient temperature	−20°C to +40°C
Liquid temperature	−20°C to +60°C; liquid must remain unfrozen
Insulation class	F
Ingress protection	IP55 or IP68, depending on configuration
Standard inlet	DN12
Standard outlet	DN8
Control options	PWM speed regulation, 0–5V speed regulation
Feedback option	FG signal

Model Selection Table

Model	Max. Flow (L/min)	Max. Head (m)	Max. Current (A)	Max. Power (W)
LFP5024-08040A	8	4	0.7	16.8
LFP5024-09070A	9	7	0.9	21.6
LFP5024-10060A	10	6	1.2	28.8
LFP5024-12080A	12	8	1.7	40.8
LFP5024-13120A	13	12	2.1	50.4
LFP5024-13150A	13	15	2.1	50.4

Maximum flow and maximum head are separate performance limits and are not achieved simultaneously. Select the model using its pump curve and the system’s required operating point.
