EVERIS LQ2

CPC Latest LQ2 Series Connector

CPC Latest LQ2 Series Connector

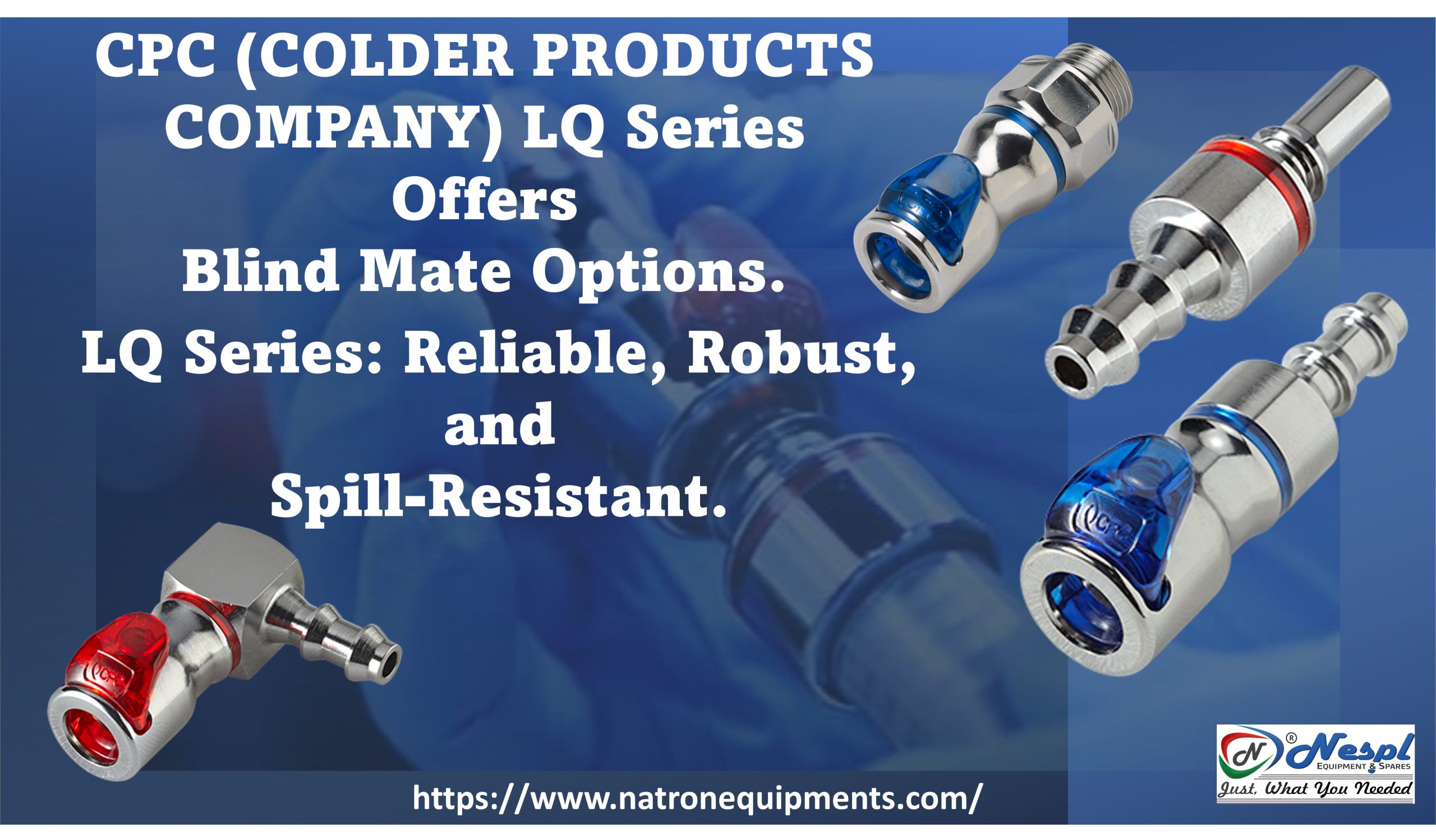

With the addition of the BLQ2 connector, CPC (Colder Products Company) has extended its LQ Series by offering blind mate options. The LQ Series is known for its reliability, robustness, and spill resistance. Connectivity in high-performance computing and data center applications is further simplified with a blind mate.

CPC LQ2 Series Connector is specifically designed to meet the needs of applications where the connection, disconnection, and latching mechanisms are permanently mounted on a server.

Want to know more about Latest LQ2 Series Connector pls visit:

https://www.natronequipments.com/medical-core-thermal-industry/liquid-cooling/electric-vehicle-charging

About CPC LQ2 Series Connector

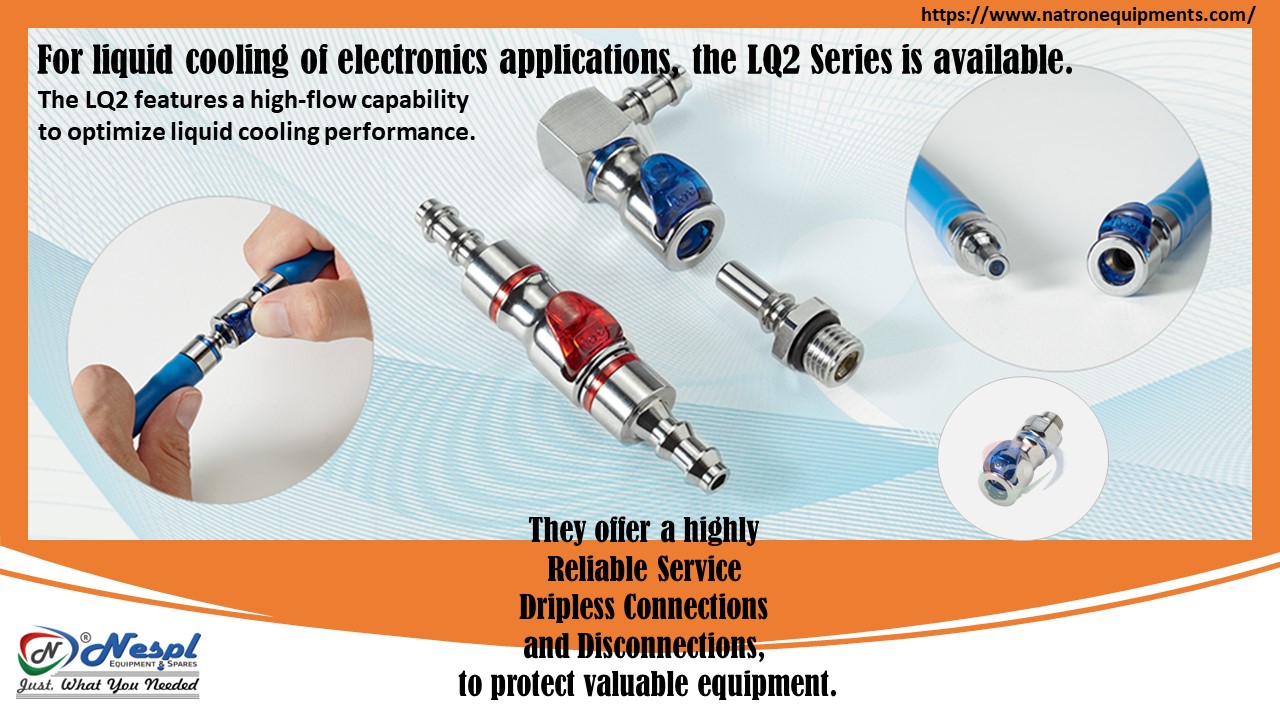

In addition to its generous chamfer, the BLQ2 quick disconnect allows for quick and secure field installation for rack-mounted liquid cooling systems. The LQ2 Series liquid cooling 1/8-inch connectors offer the highest flow capacity. In independent testing, its flow rate is 23% greater than other 1/8-inch connectors on the market. As a result of these higher flow rates, pressure drop in liquid cooling systems is reduced by an average of 34% [AK1] [HJ2].

As a member of the LQ2 Series portfolio, the BLQ2 latch less connector was designed for connection tolerance and achieves maximum flow within 1/8-inch of full engagement. In addition, it has the same multilobed seals that provide redundant protection against leakage and lasting shape retention. As a result, multilobe seals also offer greater sealing efficiency than standard O-rings while requiring less force to connect.

As the BLQ2 connector valve design has zero seal friction in the connected state, it closes quickly and reliably when the coupling is disconnected. The non-spill design allows for disconnection under pressure without leaks – vital for preventing electronics from exposure to fluids and facilitating hot swaps. The compact size also makes it easy to install in tight spaces like the server racks of large data centers.

Pls Visit:

https://www.natronequipments.com/medical-core-thermal-industry/liquid-cooling/electric-vehicle-charging



Specification Of Everis™ LQ2 Series Chrome-Plated Brass Connectors for Liquid Cooling

  • Chrome-plated brass main housing
  • Polysulfone valve & thumb latch
  • SS valve spring & external spring
  • EPDM seals
  • Lubricated with Krytox® PFPE
  • Spillage per disconnect: <0.015 cc at 0 psi, <0.063 cc at 200 psi
  • Inclusion: < 0.063 cc per connect
  • Maximum flow at disconnects: 1 gallon/minute @ 0 – 100 psi & 1/4 gallons/minute @ 101 – 200 psi
  • Pressure rating: vacuum to 200 psi, 13.8 bar
  • Temperature range: 0°F to 240°F



CPC Latest LQ2 Series Connector

Privileged Merchandiser of CPC LQ2 Series Connector

The CPC LQ2 Series Connector is ideal for the accuracy that medical and thermal applications require. Additionally, CPC offers custom connectors that meet the highest standards of medical and thermal needs.

NESPL offers a wide range of customized couplings. With an experience more than a decade in Fittings and Connectors, NESPL can help you with the best custom solutions. The LQ2 Connector is known for its precision, safety, and longevity and can span across many industries. Additionally, NESPL is assisted by reliable shipping companies that dispatch the CPC products in the most secure and smooth way.



Visit the website of NESPL to know more about the CPC LQ2 Series Connector.

https://www.natronequipments.com/
