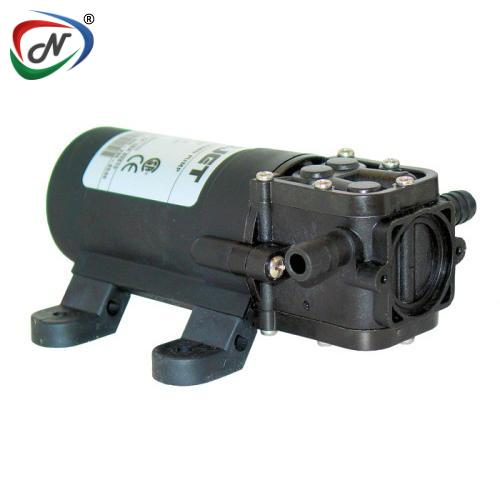

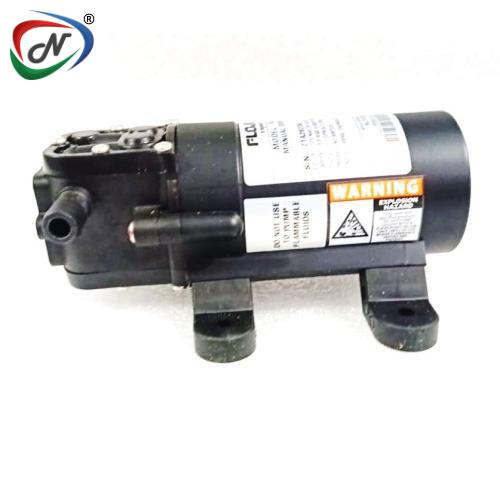

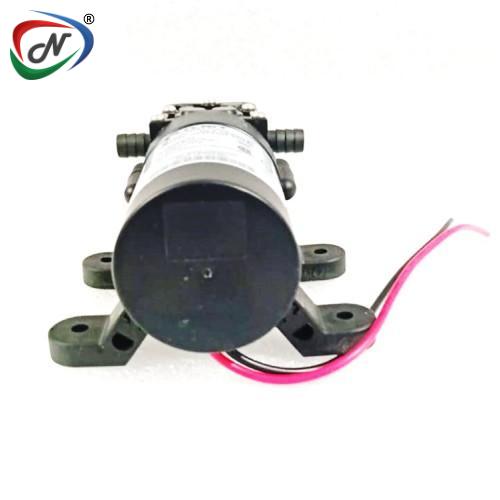

The Compact Self-Priming Diaphragm Pump incorporates a
built-in pressure switch that enables the pump to start and stop automatically
as soon as the discharge valve is opened or closed.
It is designed for intermittent duty and has the ability to
self-prime up to 0.7m.
This pump can be conveniently placed above the liquid level.
With a maximum liquid temperature of 43ºC (110ºF), it
features a duplex diaphragm design that allows for extended dry running without
any harm.
Additionally, it is equipped with built-in thermal overload
protection and has a low amp draw, making it suitable for battery-powered
applications.
Main Specifications:
Connections: - for 3/8 inch (10mm).
Dimensions: - 162mm in length, 100mm in width, and 61mm in height.
Fuse Size: - 4 AMP.
Output: - 4.2 liters per minute (0.9 gallons per minute) in open flow.
An efficient, self-priming pump that serves one outlet.
With a double-diaphragm design, it can self-prime up to a vertical lift of 1m and can run dry without causing any damage.
