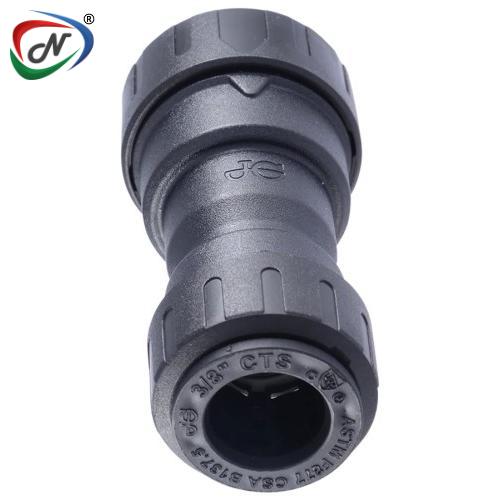

PSEI202016E – John Guest ProLock 1/2" × 3/8" Reducing Coupler

The John Guest PSEI202016E ProLock Reducing Coupler is a straight push-fit connector designed to join a 1/2-inch CTS pipe to a 3/8-inch CTS pipe. It provides a simple and reliable way to reduce the pipe size while maintaining a straight water-flow connection.

The coupler incorporates Twist-to-Lock technology, which adds connection security after the pipe has been fully inserted. It can connect compatible PEX, PE-RT, copper and CPVC pipes in various combinations.

Installation requires no soldering, adhesive, crimping, clamps or special tools. Its compact design makes it suitable for new plumbing installations, maintenance work and pipe-size transitions in restricted spaces. The fitting is also approved for eligible permanent and behind-the-wall installations when fitted according to the manufacturer’s instructions and applicable plumbing codes.

Main Features:

• Reducing connection: Connects 1/2" CTS pipe to 3/8" CTS pipe.
• Straight configuration: Reduces the pipe size without changing the direction of flow.
• ProLock push-fit design: Enables quick and convenient pipe connection.
• Twist-to-Lock technology: Helps provide a secure connection after pipe insertion.
• Multi-pipe compatibility: Suitable for compatible PEX, PE-RT, copper and CPVC pipes.
• No special tools required: Eliminates soldering, glue, crimping and clamps.
• Wet-line installation: Can be installed on water lines that are not completely dry.
• Disconnectable: Can be removed without damaging suitable pipe when the proper procedure is followed.
• Compact construction: Suitable for confined or difficult-to-access installation areas.
• Behind-wall approved: Suitable for qualifying concealed installations without an access panel.
• Hot and cold-water applications: Designed for compatible CTS water-distribution systems.

Technical Specifications:

The pressure and temperature figures are combined operating ratings; the maximum pressure reduces as the water temperature increases.

Main Applications:

The PSEI202016E may be used for:

• Domestic hot and cold-water plumbing
• Potable-water distribution systems
• Straight pipe-size reductions
• Connecting a 1/2" water line to a 3/8" CTS line
• PEX, PE-RT, copper and CPVC pipe transitions
• Plumbing repairs and system extensions
• Confined-space installations
• Concealed or behind-the-wall pipework
• Residential and light-commercial water systems

Compatibility Note

This reducing coupler has two different CTS connections:

• 1/2-inch CTS
• 3/8-inch CTS

Confirm the actual pipe sizes and materials before ordering. CTS pipe measurements should not be confused with OD tubing sizes used in beverage, pneumatic or water-treatment tubing systems.

Important Usage Notes

• Intended for compatible water systems.
• Do not use with gas, fuel oil or compressed air.
• Not suitable for stainless-steel pipe.
• Protect outdoor installations from prolonged ultraviolet exposure.
• Keep the fitting away from solder flux, paint thinner, aggressive cleaners and incompatible chemicals.
• Do not apply excessive side loading to the fitting.
• Support the connected pipework properly.
• Never install a damaged fitting or pipe.
• Pressure-test the completed installation before use.
• Confirm suitability for the actual fluid, pressure and temperature.
• Installation must comply with applicable plumbing codes and manufacturer instructions.
