PI201206S 3/8 x 3/16 REDUCING UNION

#NSSP005529

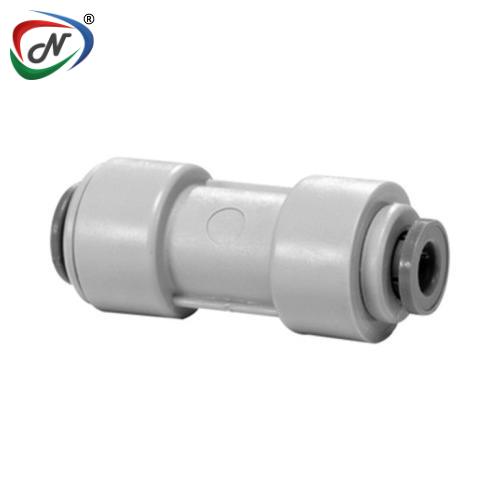

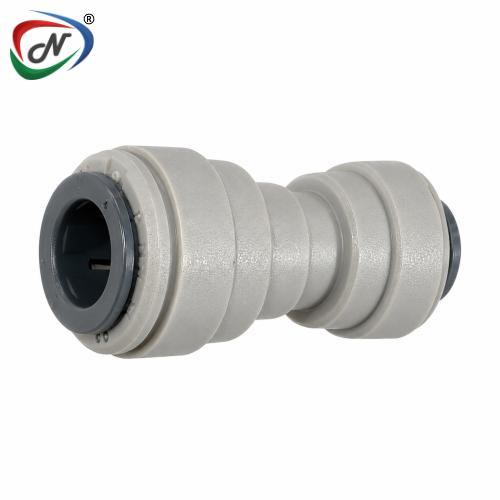

PI201206S 3/8 x 3/16 REDUCING UNION

Decreases the supply feed to a reduced outlet dimension.

The John Guest grey push-fit acetal reducing straight connector fitting is designed to connect two pipes of differing sizes.
This fitting is both quick and easy to install, allowing for an immediate push-fit connection that ensures a leak-proof seal without the necessity for tools, heat, or sealing compounds.
Its distinctive collet locking mechanism securely grips the pipe, preventing any deformation or flow restriction.
These fittings are resistant to corrosion and can be fully disassembled, thereby enhancing system efficiency and minimizing downtime during maintenance activities.

Main Features:

It is classified as food-grade, making it appropriate for use with food products, drinking liquids, inert gases, air, as well as in pneumatic and vacuum applications.

The design features an instant push-fit connection that ensures a leak-proof seal.

Users can connect, disconnect, and reconnect the components in mere seconds without the need for tools.

The absence of scale accumulation enhances both performance and the longevity of the equipment.

Additionally, it boasts excellent flow characteristics and is compatible with LLDPE or soft metal piping and tubing.

SKU	Description	Tube OD "	Tube OD "	Accreditations
PI200806S	John Guest Reducing Straight Connector 1/4" × 3/16"	1/4	3/16	BSI WRAS
PI201006S	John Guest Reducing Straight Connector 5/16" × 3/16"	5/16	3/16	BSI WRAS
PI201008S	John Guest Reducing Straight Connector 5/16" × 1/4"	5/16	1/4	BSI WRAS
PI201206S	John Guest Reducing Straight Connector 3/8" × 3/16"	3/8	3/16	BSI WRAS
PI201208S	John Guest Reducing Straight Connector 3/8" × 1/4"	3/8	1/4	BSI WRAS
PI201210S	John Guest Reducing Straight Connector 3/8'' × 5/16"	3/8	5/16	BSI WRAS
PI201608S	John Guest Reducing Straight Connector 1/2" × 1/4''	1/2	1/4	BSI WRAS
PI201610S	John Guest Reducing Straight Connector 1/2'' × 5/16"	1/2	5/16	BSI WRAS
PI201612S	John Guest Reducing Straight Connector 1/2" × 3/8"	1/2	3/8	BSI WRAS
PM200804S	John Guest Reducing Straight Connector 5/16'' × 5/32"	5/16	5/32	BSI WRAS
