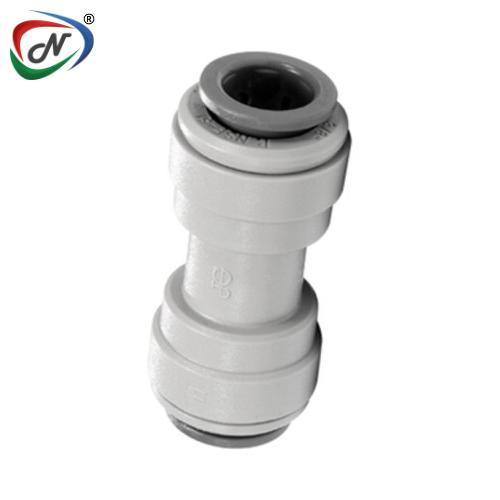

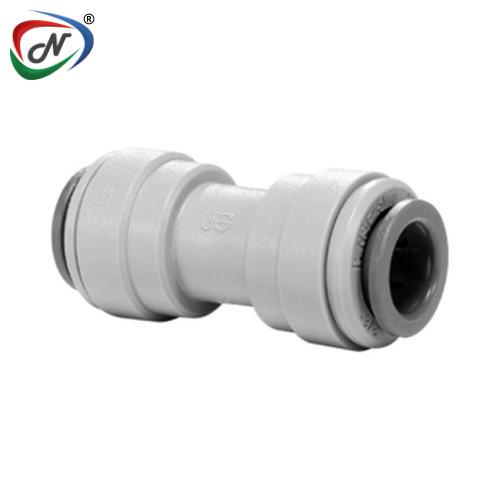

PI0406S 3/16 EQUAL STRAIGHT CONNECTOR

#NSSP005531

Product Description

PI0406S 3/16 EQUAL STRAIGHT CONNECTOR

The John Guest grey push-fit acetal equal straight connector fitting provides a rapid and straightforward method for connecting two imperial pipes of the same size. Designed for ease of installation, these push-fit fittings establish an immediate connection and a leak-proof seal without requiring tools, heat, or sealing compounds.

The innovative collet locking mechanism ensures that the pipe is held firmly and securely, preventing any deformation of the pipe and maintaining optimal flow. Additionally, these fittings are resistant to corrosion and can be fully disassembled, enhancing system efficiency and minimizing downtime during maintenance activities.

Main Features:

The acetal copolymer material is both rigid and durable.
It is classified as food-grade, making it appropriate for use with food products, drinking liquids, inert gases, air, as well as in pneumatic and vacuum applications.
The design features an instant push-fit connection that ensures a leak-proof seal.
Users can connect, disconnect, and reconnect the components in mere seconds without the need for tools.
The absence of scale accumulation enhances both performance and the longevity of the equipment.
Additionally, it boasts excellent flow characteristics and is compatible with LLDPE or soft metal piping and tubing.

Main Specifications:

SKU	Description	Tube OD "	Accreditations
PI0406S	John Guest Equal Straight Connector 3/16"	3/16	BSI WRAS
PI0408S	John Guest Equal Straight Connector 1/4"	1/4	BSI WRAS
PI0412S	John Guest Equal Straight Connector 3/8"	3/8	BSI WRAS
PI0416S	John Guest Equal Straight Connector 1/2"	1/2	BSI WRAS
PM0404S	John Guest Equal Straight Connector 5/32"	5/32	BSI WRAS
PM0408S	John Guest Equal Straight Connector 5/16"	5/16	BSI WRAS
