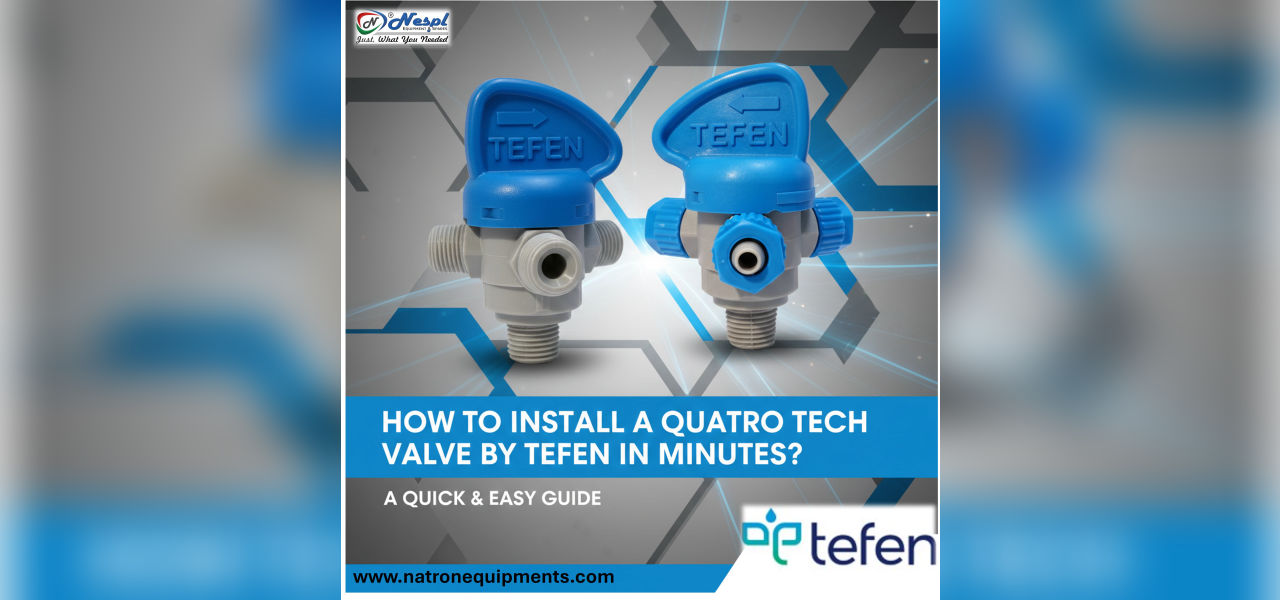

Tefen’s Quatro Tech Valve is a compact and lightweight irrigation valve designed for fast installation, reliable performance, and long service life. It is widely used in agricultural and industrial fluid systems where efficiency, durability, and ease of installation matter.
Manufactured from reinforced polypropylene and available with multiple connection options such as barb, BSPT, and NPT, the Quatro Tech Valve is suitable for both professional installations and simple DIY irrigation setups.
For any doubt & Query write us at: sales3@natronequipments.com
Why Choose the Quatro Tech Valve?
The Quatro Tech Valve is preferred because it combines strength, flexibility, and simplicity in one design. Its corrosion-resistant polypropylene body performs well in outdoor and industrial environments. Multiple connection options allow it to integrate easily with different tubing and piping systems, while its pressure-handling capability makes it suitable for demanding applications. Most importantly, the valve is designed to reduce installation time without compromising reliability.
Tools and Materials You’ll Need
Before starting the installation, make sure you have the correct Quatro Tech Valve for your system, matching tubing or pipe, PTFE (plumber’s) tape or thread sealant for threaded connections, a pipe cutter or utility knife, an adjustable wrench or pliers, and a clean cloth.
Using the correct connection type—barbed or threaded—based on your system is essential for a leak-free installation.
Step-by-Step Installation Guide
Step 1: Prepare the Work Area
Begin by shutting off the water supply or disconnecting the system from pressure. Drain any remaining fluid from the section where the valve will be installed. Clean the pipe or tubing ends thoroughly, removing dirt, debris, or uneven edges. Proper preparation ensures better sealing and faster installation.
Step 2: Check Valve Orientation
Before installation, check the flow direction of the valve. Many valves have a directional arrow on the body. Installing the valve in the correct direction prevents backflow issues and ensures smooth system operation.
Step 3: Install the Valve – Barbed Connection
If your Quatro Tech Valve uses barbed connections, cut the tubing cleanly and straight. Push the tubing firmly onto the barbs until it fits snugly with no gaps. If required, use hose clamps on each side to improve sealing and prevent leaks. Barbed connections are quick to install and work well without threading.
Step 4: Install the Valve – Threaded Connection
For threaded BSPT or NPT connections, wrap PTFE tape clockwise around the male threads two to three times. Screw the valve onto the fitting by hand first, then tighten gently with a wrench. Avoid overtightening, as excessive force can damage plastic valves. Make sure the tape seals the threads without entering the flow path.
Step 5: Align and Support the Valve
Once installed, check that the valve is not under stress from bent tubing or misaligned pipes. If necessary, add supports or clips to hold the valve and piping securely. Proper alignment improves durability and helps maintain leak-free joints.
Step 6: Test the Installation
Slowly restore water pressure and inspect all connections for leaks. Operate the valve to ensure smooth opening and closing. If a leak appears, tighten the connection slightly or recheck the tubing or thread sealing.
Tips for Faster Installation
Preparing all tools and materials in advance saves time. Always dry-fit components before final tightening to confirm alignment and fit. Matching the valve connection type with the correct tubing or fittings reduces adjustments during installation.
Must Visit to explore more: https://www.natronequipments.com/various-industry-products/commercial-products-by-tefen
Maintenance and Common Mistakes
Regularly inspect the valve for dirt buildup or wear, especially in agricultural systems. Flushing the system occasionally helps prevent sediment accumulation. Common mistakes to avoid include overtightening threaded connections, ignoring flow direction, and skipping thread sealant on threaded joints.
Buy Genuine Tefen Quatro Tech Valves from NESPL
For reliable performance and long service life, it’s important to use genuine flow control components from a trusted supplier. At NESPL, we are the official supplier and distributor of Tefen products, including the Quatro Tech Valve range used in irrigation and industrial fluid systems.
Conclusion
Installing a Quatro Tech Valve by Tefen is designed to be quick and straightforward when done correctly. With proper preparation, correct alignment, and clean connections, the valve can be installed in just minutes while delivering reliable long-term performance.
Whether you are upgrading an existing irrigation setup or building a new fluid control system, following these steps will help ensure efficient operation and dependable results.
